Signal and Lighting Devices for the Food & Beverage Industry

PATLITE has designed a line of products specifically for the needs of the Food and Beverage industry.  The LED Signal Towers, LED Work Lights, and Smart Alert MP3 products in this line all meet the various requirements of Food and Beverage procesing facilities.  PATLITES IP69K rated products are durable, designed and smooth surfaces and fully enclosed for reguar, high temperature, high pressure wash downs.  There is no need for additional protective enlcosures, greatly reducing material and labor costs.

PATLITE also offers product solutions for extremely cold environments (warehouses, refrigerators, freezers), which are able to withstand extremely cold temperatures down to -40 degrees C (-40 degrees F).

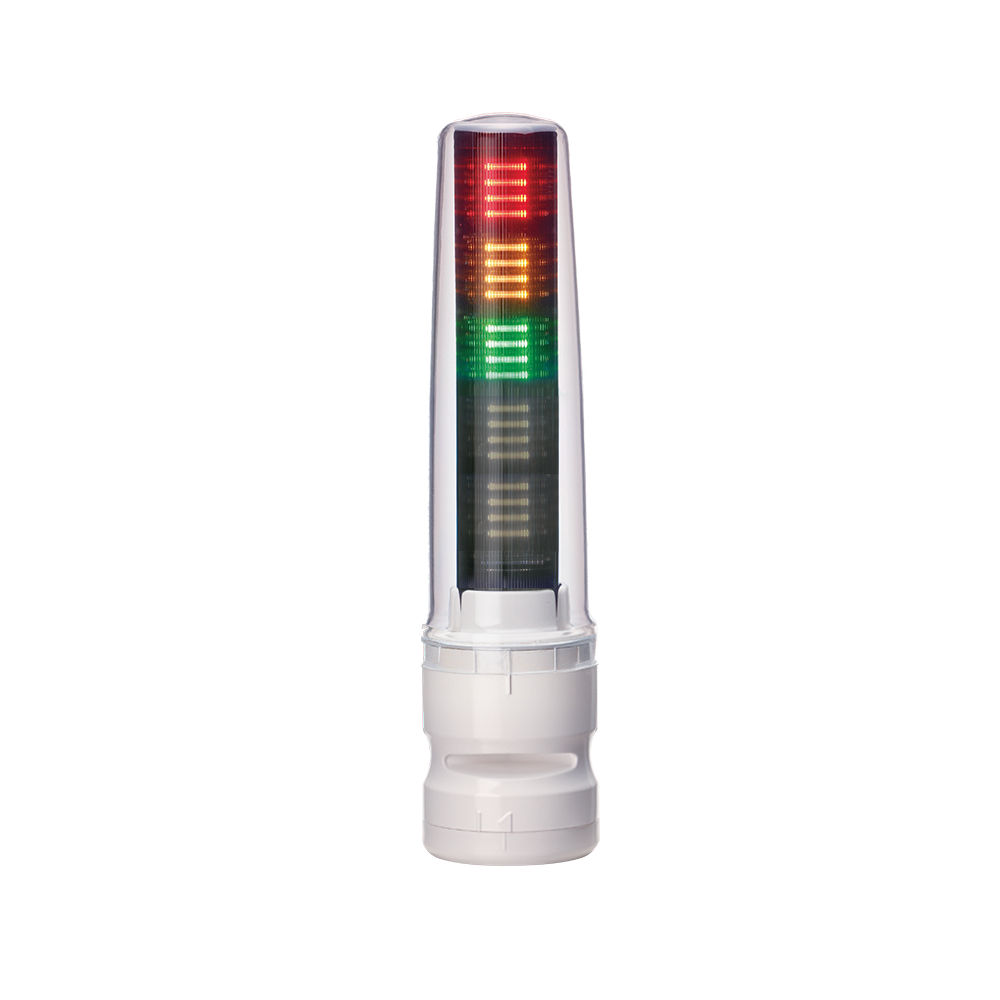

PATLITE LS7-9/LS7-7 LED Signal Towers - Dust tight and withstands wash downs without added protection

• Ideal for high-pressure, high-temperature washdown (IP69K)
• Affordable price
• Smooth, sealed surface repels food and debris
• Available with or without alarm
• Bright, long-lasting LED technology
• Lead wires or M12 quick disconnect
• Included 1/2" NPT socket
• DC24V

PATLITE LR LED Signal Tower

• 'Twist-and-lock' Modular system
• Impact resistant lens with superior light output
• Highly visible, zero maintenance LED technology
• Optimal modular alarm with 85dB to 90dB output (at 1m)
• 40mm, 50mm, 60mm, 70mm diameter
• NPN/PNP Open-collector. (AC type NPN only)
• Protection Rating:  IP65, NEMA Type 4, 4X, 13
• Terminal or jacketed cable
• Rated Voltage:  DC12V, DC24V or AC100-240V
• LED colors avilable in: Red, Amber, Green, Blue, and Clear/White

PATLITE CLA LED Light Bar - Safer, high-impact resistant replacement for fluorescent lights

• Ideal for high-pressure, high-temperature washdown (IP69K)
• 6 lengths - 100mm to 12oomm
• Bright, long-lasting LED technology
• Stainless steel & magnetic mounting brackets available.
• Great as a lighting replacement
• DC24V

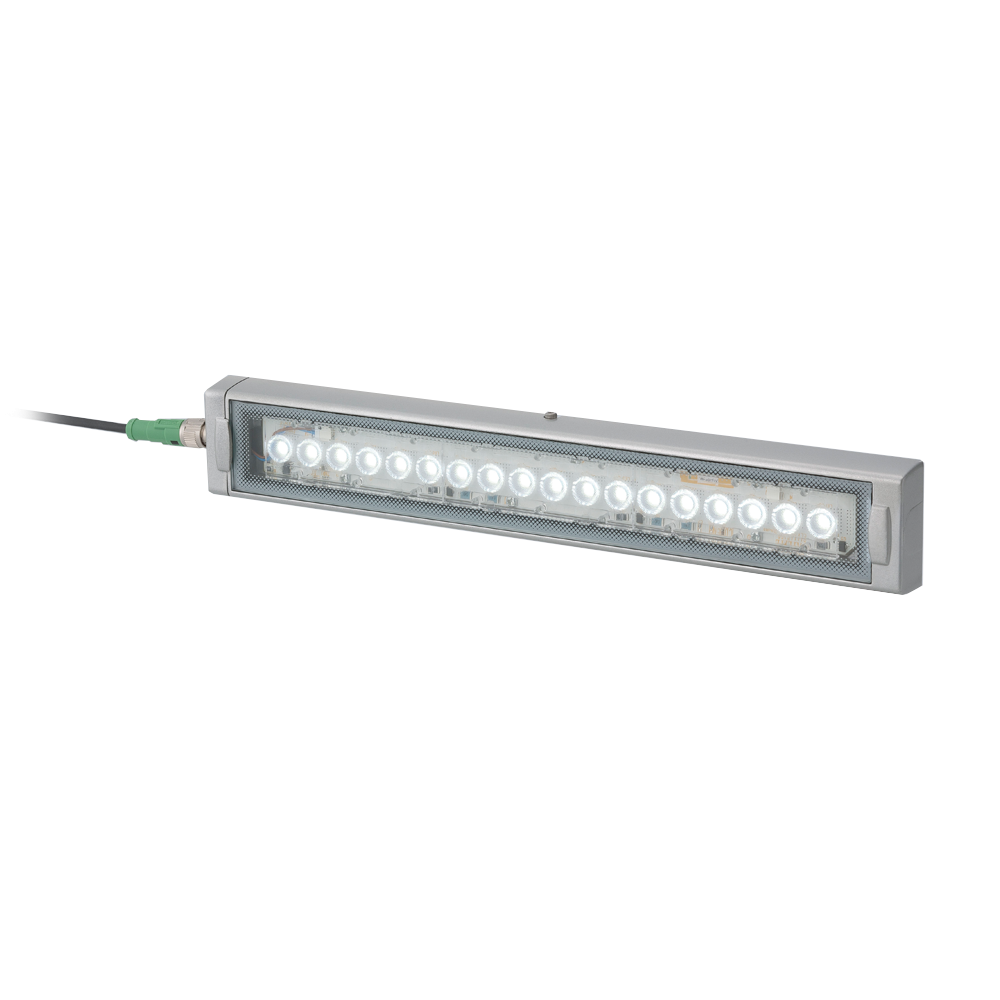

PATLITE CLK LED Light Bar - Ultra-bright and built to withstand harsh environments

• Ideal for high-pressure, high-temperature washdown (IP69K)
• Oil and Water resistant (IP65G, IP67G)
• Bright, long-lasting LED technology
• Stainless Steel or Aluminum casing
• Glass or Acrylic lens options
• 0.5m cable or M12 Quick Disconnect
• Daisy-chain connectable
• DC24V

PATLITE CLN LED Spot Light - High intensity LED spot lighting that stays cool inside machinery

• Ideal for high-pressure, high-temperature washdown (IP69K)
• Oil and Water resistant (IP65G, IP67G)
• Bright, long-lasting LED technology
• Flexible mounting angle adjustment
• Tilt only or pan and tilt models available
• DC24V

PATLITE LFH LED warning light - Bright, rugged warning light great for vehicle mounting

• Suitable for washdown (IP66)
• Indoor or outdoor applications
• Bright, long-lasting outdoor visible LED technology
• Adjustable LED brightness to fit the environment
• Five LED and dome colors to choose from
• High viibration resistance - 9G
• 110 flashers per minute
• DC12V, DC24V or AC100-240V

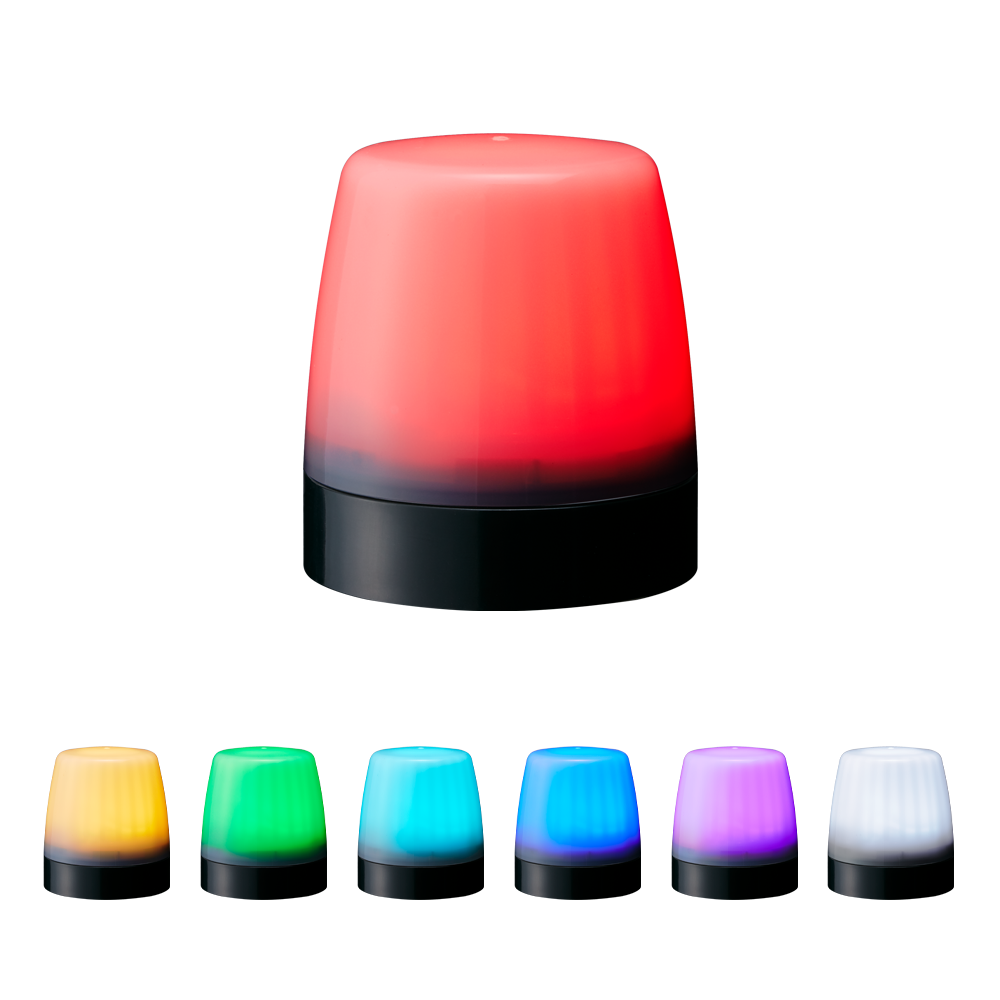

PATLITE NE-M1-CL7 LED Signal Light - 7 colors, all in one unit

• Bright, long-lasting LED technology
• Compact size - 57mm diameter
• Protection Rating: IP66, IP67
• 1/2" NPT adaptor available
• Lead wires (2m)
• LED colors available in one unit: Red, Yellow, Green, Light Blue, Blue, Purple, and White
• DC12V to DC24

PATLITE EHS/EHV MP3 Smart Alert - MP3 annunciator that provides loud, yet clear voice messages

• Suitable for washdown (IP65)
• "You Say It, We Play It" user recorded messages with MP3 files (EHV)
• 32 Pre-recorded sounds (EHS, 63 for EHV) to easily distinguish various conditions
• Adjustable volume up to 100dB (105 db for voice)
• Up to 220 sec recording time (@64kbps, EHV)
• High vibration resistance - 4.5G
• DC12-24V, DC12-48V or AC100-240V
