JVL Part Numbers can be hard to understand, decipher. Scott Equipment Company wants to make it easier for you to understand JVL's product numbers.
A typical JVL Product Number can be: MAC140-A1AAAA-A109. It's hard to know what that 3rd and 4th 'A' mean. Using the table below, by working across the table horizontally, you can decipher the 3rd 'A' and determine that the motor uses a Square Flange and the 4th 'A' tells you the color of the motor (in this case, black).
JVL MAC Integrated Servo Motor Product Numbers
The JVL MAC motor is a complete motion solution brushless servo motor with an integrated controller. The JVL MAC motor minimizes installation costs and improves performance. The servomotor, hallsensor, encoder and electronics are designed to fit into one unit.
| Power Size | Motor Type | IP Protection | Feedback | Housing & Flange | Motor Color | Shaft Dimension | Connector | PSU Connector | Special |
| MAC050 46 W - 0.11 Nm. |
A: 2700 RPM | 1: IP42 without brake | A: Encoder 4096 CPR | A: Square flange | A: Black | A: ø6.35 mm D-shape | A002: Without M16 PDO connector | ||
| MAC095 92 W - 0.22 Nm. |
A: 4000 RPM | 2: IP55 without brake | B: Encoder 8000 CPR | E: 20 mm shorter house, holes in side | B: Green. IP66. |
B: ø6.35 mm round | A003: Short fins with fan for IP66 motor. | ||
| MAC101 134 W - 0.48 Nm. (2700 RPM) Stainless steel. |
F: 2700 RPM, New PCB | 3: IP66 without brake | C: Encoder 8192 CPR | F: Round Flange for gear | C: White. IP66. |
E: ø6 mm with key 2x5 | A004: Solder jumper | ||
| MAC140 134 W - 0.32 Nm. |
G: 3000 RPM, new model | 4: IP42 with brake | F: Absolute multiturn 4096 Rev. Single 8192 CPR | R: Square flange incl. STO M8 4pin | F: Red. IP66 |
F: ø8 mm with key | A005: Long fins (UL approved) | ||
| MAC141 134 W - 0.48 Nm. (2700 RPM) |
L: Low cost, New PCB | 5: IP55 with brake | G: Incremental encoder 8192 CPR | S: Square flange. Incl. STO M8 3pin (Obsolete use R option) | G: Black thick Epoxy painting. IP66 |
G: ø8mm - 51mm long w/2mm hole. Standard Ball bearing. For MAC100/101 ø10mm shaft | A009: 2. Gen. Connector for Ethernet modules | ||
| MAC320 134 W - 0.52 Nm. (4000 RPM) |
6: IP66 with brake | H: Incremental + Absolute multiturn encoder 8192 CPR | T: Square flange with housing Fan, short fin | H: Orange. IP66 |
H: For HFOS gear.ø8mm - 55mm long w/2mm hole. Shaft Backlash free | A010: Silicone potted for high G forces | |||
| MAC400 400 W - 1.27 Nm. 115 or 230VAC supply. |
9: IP69K | U: Square flange with housing Fan, short fins, Incl. STO M8 3pin (Obsolete use V option) | S: Stainless steel | I: ø10mm - 36mm long stainless steel shaft backlash free. For MAC101 | A011: Coating of inside electronics. | ||||
| MAC402 400 W - 1.27 Nm. 12-48VDC supply. |
V: Square flange with housing Fan, short fins, incl. STO M8 4pin | J: Black, long fins | J:19x40mm with key 6x30mm | A012: 2xM16 connectors | |||||
| MAC800 750 W |
K:14x29mm with key 5x20mm | A026: 2xM16 connectors and isolated ground + special inrush PCB (MAC400) | |||||||
| MAC1200 1200 W (3000 RPM) |
L: 24mm key 8x35mm | A027: Long fins with WDBR2 (not UL approved | |||||||
| MAC1500 1.5 kW, 3x400-480 VAC |
M:14mm key 5x20mm | A031 1xM16 Angled connector. | |||||||
| MAC3000 3.0 kW, 3x400-480 VAC |
N: ø10mm - 55mm stainless steel shaft. No axial play. Keyway 4x20mm | A032: 1xM16 connector | |||||||
| MAC4500 4.5 kW, 3x400-480 VAC |
P: 19x27mm with key | A036 2xM16 Angled connector. | |||||||
| Q: 14x30±0.5mm Round shaft | A041: No shaft sealing | ||||||||
| R: 19mmx40±1mm Round shaft | |||||||||
| S: 24x57.5±1mm Round shaft |

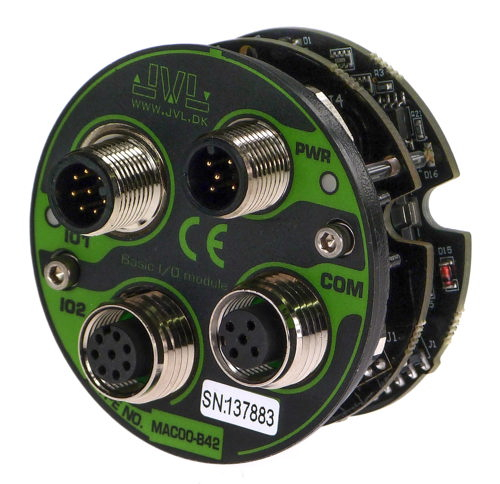

JVL MAC00 - MAC Module Part Numbers
JVL MAC Integrated Servo Motors utilize a module concept. JVL's module concept allow users to choose connector types and communication protocols.
| Module | Cable Length | Special |
| 00: Endcover black IP42 without holes. | 02: 2 meters. | C002: Isolated. |
| 01: Endcover with 2 cable glands IP67 | 05: 5 meters. | C005: P- Isolated from earth + viton seal |
| 02: Endcover with 4 cable glands IP67 | 10: 10 meters. | ZB: Zigbee wireless |
| B1: RS232/485, Clk/Dir Enc,DSUB Con LED IP42 | 15: 15 meters. | CAA: Coating |
| B2: RS232/485, Clk/Dir Enc, Cabl glands IP67 | 20: 20 meters. | |
| B4: RS232/485, Clk/Dir Enc, M12 conn., IP67 | ||
| B41: RS232/485, Misc I/O, M12 conn., IP67 | ||
| B42: RS232/485, 8DI+4DO+1AI, pins like R4, IP67 | ||
| B43: RS232/485 M12, RS422,14IO IP67 | ||
| CS: Cable, IP67 I/O + power | ||
| EC4: EtherCAT module M12 connectors | ||
| EC41: EtherCAT module M12 6IO 2AI RS422 | ||
| EI4: EtherNet/IP module M12 connectors G2 | ||
| EI41: EtherNet/IP module M12 6IO 2AI RS422 | ||
| EL4: Powerlink module M12 connectors | ||
| EL41: Powerlink module M12 connectors 6IO 2AI RS422 | ||
| EM4: MODBUS TCP module M12 connectors | ||
| EM41: MODBUS TCP module M12 6IO 2AI RS422 | ||
| EP4: Profinet module M12 connectors | ||
| EP41: Profinet module M12 6IO 2AI RS422 | ||
| ES4: Sercos III module M12 connectors | ||
| ES41: Sercos III module M12 6IO 2AI RS422 | ||
| EW4: Ethernet Wireless LAN, M12 IP67, 4I/2O | ||
| FB4: Bluetooth Wireless, M12 conn, IP67 6I/4O | ||
| FC2: CAN-Open DS-301, cable glands IP67 | ||
| FC4: CAN-Open DS-301, M12 conn., IP67 | ||
| FC41: CAN-open module w/gen 2 conn. | ||
| FD4: DeviceNet, M12 conn., IP67 | ||
| FP1: Profibus, DSUB, IP42 | ||
| FP2: Profibus, cable glands IP67 | ||
| FP4: Profibus, M12 conn., IP67 | ||
| FR2: HighSpeed serial RS485, 4I/4O, Glands | ||
| FR4: HighSpeed serial RS485, 2I+2O,M12 IP67 | ||
| FS1: RS485 230 kbaud, DSUB IP42 | ||
| FS4: RS485 230 kbaud, M12 IP67 | ||
| FZ4: IEEE 802.15.4 wireless with NanoPLC func | ||
| MECHKIT1: MAC00 Modules sparepart kit | ||
| CONKIT1: Connectorkit. | ||
| P4: Process module IO 4-20mA opt. M12, IP67 | ||
| P5: Process module IO 4-20mA opt.Harting Con | ||
| R1: Nano-PLC 8DI+4DO+1AI DSUB IP42 | ||
| R3: Nano-PLC 8DI+4DO+1AI, No cable IP67 | ||
| R4: Nano-PLC 8DI+4DO+1AI, M12 IP67 |

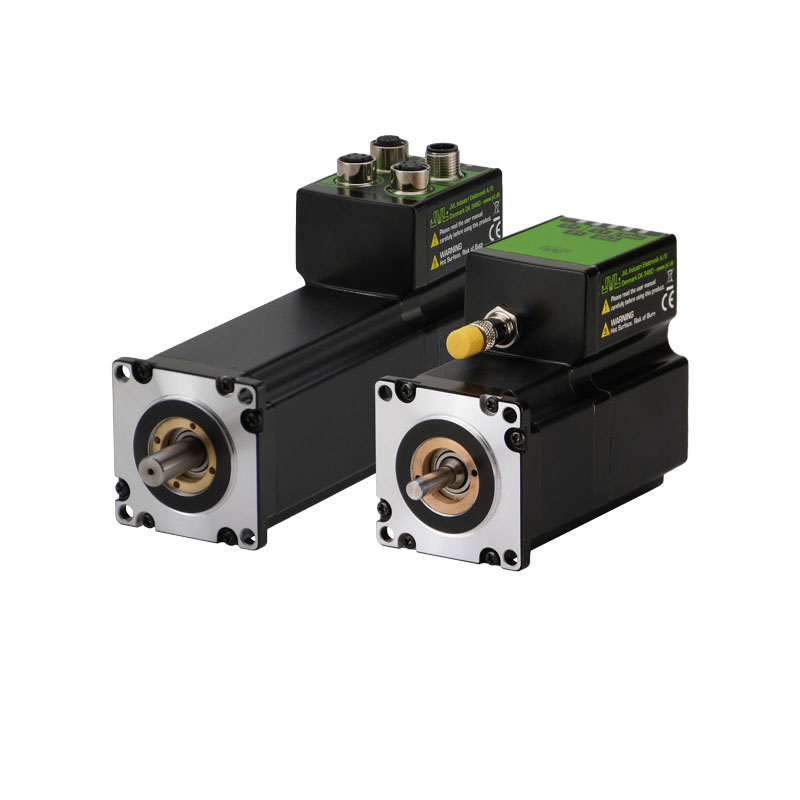

JVL MIS - Integrated Stepper Motor Part Numbers
The JVL stepper motor is a complete motion solution stepper motor with an integrated controller. The JVL integrated stepper motor minimizes installation costs and improves performance. The servomotor, hallsensor, encoder and electronics are designed to fit into one unit.
| Motor Size | IP & Shaft | Connection | Encoder | Supply Voltage | Driver Current | Driver Input | Driver Resolution | Special | Transmission | Stages | IP Rating |
| MIS171S: 43.1x73.5 mm Holding Torque: 0.18 Nm Max. 48 W Radial Connector 7-72 VDC |
1: ø6.35x20 Round Shaft: IP42 Motor: IP42 |
M1: Pulse/Dir | N0: No encoder | 73: SMD73 Driver 18-28VDC. | A: 0250 mA. | F: 5V | A: Resolution: 1/1 (200 steps/rev) 1/3 standby current |
Planetary Gear mounted, Max. 10Nm | 3.8:1 | 1 | IP42 |
| MIS171Q: 43.1x73.5 mm Holding Torque: 0.18 Nm Max. 48 W Axial Connector 7-72 VDC |
2: ø6.35x20 Round Shaft: IP65 - Sealing Motor: IP65 - Painted |
M3: 4xIOA, RS485 | H2: Magnetic encoder. Closed loop. | C3: SMD73 Driver, Coated PCB | B: 0350 mA.. | E: 24V PNP | B: Resolution: 1/1 (200 steps/rev) 1/4 standby current |
Planetary Gear mounted, Max. 20Nm | 4.9:1 | 2 | |
| MIS173S: 43.1x85.2 mm Holding Torque: 0.40 Nm Max. 99 W Radial Connector 7-72 VDC |
3: ø10x20 Round Shaft: IP42 Motor: IP42 |
M5: 8xIOA, RS485 (x2) | H4: Absolute multiturn encoder and magnetic encoder. Closed loop. | 74: SMD74 Driver 18-48VDC | C: 0400 mA. | D: 24V NPN | C: Resolution: 1/1 (200 steps/rev) 1/10 standby current |
15:1 | 3 | ||
| MIS173Q: 43.1x85.2 mm Holding Torque: 0.40 Nm Max. 99 W Axial Connector 7-72 VDC |
4: ø10x20 Round Shaft: IP65 - Sealing Motor: IP65 - Painted |
M6: 8xIOA, CANopen | C4: SMD74 Driver, Coated PCB | D: 0500 mA. | D: Resolution: 1/2 (400 steps/rev) 1/3 standby current |
19:1 | |||||
| MIS176S: 43.1x106.0 mm Holding Torque: 0.78 Nm Max. 145 W Radial Connector 7-72 VDC |
5: ø14x35.1 Round Shaft: IP42 Motor: IP42 |
M8: CANopen, SSI | 75: SMC75 Controller 12-48VDC | E: 0750 mA. | E: Resolution: 1/2 (400 steps/rev) 1/5 standby current |
24:1 | |||||
| MIS176Q: 43.1x106.0 mm Holding Torque: 0.78 Nm Max. 145 W Axial Connector 7-72 VDC |
6: ø14x35.1 Round Shaft: IP65 - Sealing Motor: IP65 - Painted |
M9: 4xIOA, RS485, SSI | C5: SMC75 Controller, Coated PCB | F: 0800 mA. | F: Resolution: 1/2 (400 steps/rev) 1/10 standby current |
56:1 | |||||
| MIS231A: 56.4x96 mm Holding Torque: 1.1 Nm Max. 74 W 12-48 VDC |
7: ø8x52 Round Shaft: IP42 Motor: IP42 |
MA: 4xIOA, CANopen, SSI | 66: SMC66 Controller 6A 12-72VDC | G: 0850 mA. | G: Resolution: 1/4 (800 steps/rev) 1/2 standby current |
65:1 | |||||
| MIS231Q: 56.4x103 mm Holding Torque: 0.97 Nm Max. 177 W Axial Connector 7-72 VDC |
8: ø6.35x20 D-cut Shaft: IP42 Motor: IP42 |
MB: 4xIOA, CANopen (x2) | C6: SMC66 Controller, Coated PCB | H: 0900 mA. | H: Resolution: 1/4 (800 steps/rev) 1/3 standby current |
71.1 | |||||
| MIS231R: 56.4x103 mm Holding Torque: 1.16 Nm Max. 198 W Axial Connector 7-72 VDC |
9: ø5x20 D-cut Shaft: IP42 Motor: IP42 |
ME: 4xIOA, Power + CANopen | D6: SMC66 Controller, with M8 connector for front mounted brake | I: 1000 mA. | I: Resolution: 1/4 (800 steps/rev) 1/5 standby current |
83.1 | |||||
| MIS231S: 56.4x103 mm Holding Torque: 0.97 Nm Max. 177 W Radial Connector 7-72 VDC |
11: ø6.35x20 Round Shaft: IP42 Motor: IP65 - Painted |
MG: 4xIOA/RS485 (12p) | E6: SMC66 Controller, Coated PCB with M8 connector for front mounted brake | J: 1200 mA. | J: Resolution: 1/4 (800 steps/rev) 1/10 standby current |
91.1 | |||||
| MIS231T: 56.4x103 mm Holding Torque: 1.16 Nm Max. 198 W Radial Connector 7-72 VDC |
12: ø9.53x30.5 D-cut Shaft: IP42 Motor: IP42 |
ML: 4xIOA/RS485 (17p) | F6: SMC66 Controller, Potted PCB with M8 connector for front mounted brake | K: 1250 mA. | K: Resolution: 1/5 (1000 steps/rev) 1/3 standby current |
116.1 | |||||
| MIS232A: 56.4x119 mm Holding Torque: 1.8 Nm Max. 85 W 12-48 VDC |
13: ø9.53x30.5 D-cut Shaft: IP42 Motor: IP42 Rear: ø10x32.6 D-cut |
MH: 4xIOA/RS485, CANopen | S6: SMC66 Controller with STO | L: 1500 mA. | L: Resolution: 1/8 (1600 steps/rev) 1/1 standby current |
||||||
| MIS232K: 56.4x119 mm Holding Torque: 1.6 Nm Max. 110 W 12-48 VDC |
14: ø14x35.1 w/ 5x5 Key Shaft: IP42 Motor: IP42 |
N1: No connections | T6: SMC66 Controller, Coated PCB with STO | M: 1750 mA. | M: Resolution: 1/8 (1600 steps/rev) 1/2 standby current |
||||||
| MIS232Q: 56.4x124 mm Holding Torque: 1.97 Nm Max. 221 W Axial Connector 7-72VDC |
15: ø14x35.1 w/ 5x5 Key Shaft: IP42 Motor: IP42 Rear: ø10x32.6 D-cut |
R1: 4xIOA/RS485 High qty. | P6: SMC66 Controller, Potted PCB | N: 2000 mA. | N: Resolution: 1/8 (1600 steps/rev) 1/3 standby current |
||||||
| MIS232R: 56.4x124 mm Holding Torque: 2.53 Nm Max. 316 W Axial Connector 7-72 VDC |
16: ø5x20 Round Shaft: IP42 Motor: IP42 |
R2: 4xIOA/RS485 Low qty. | Q6: SMC66 Controller, Potted PCB + STO | O: 2100 mA. | |||||||
| MIS232S: 56.4x124 mm Holding Torque: 1.97 Nm Max. 221 W Radial Connector 7-72 VDC |
17: ø9.53x30.5 D-cut Shaft: IP65 - Sealing Motor: IP65 - Painted |
C1: PG12 (R), 8xIOA/RS548 | R6: SMC66 Controller, Coated PCB with STO + Cable | P: 2250 mA. | |||||||
| MIS232T: 56.4x124 mm Holding Torque: 2.53 Nm Max. 316 W Radial Connector 7-72 VDC |
18: ø9.53x30.5 D-cut Shaft: IP65 - Sealing Motor: IP65 - Painted Rear: ø10x32.6 D-cut |
C2: PG12 (R), 8xIOA/RS548, 5m | 85: SMC85 Controller 12-72VDC | Q: 2400 mA. | |||||||
| MIS234A: 56.4x154 mm Holding Torque: 2.9 Nm Max. 77 W 12-48 VDC |
19: ø14x35.1 w/ 5x5 Key Shaft: IP65 - Sealing Motor: IP65 - Painted |
C3: PG12 (R), 8xIOA/RS548, 1m | C8: SMC85 Controller, Coated PCB | R: 2500 mA. | |||||||
| MIS234Q: 56.4x161 mm Holding Torque: 3.08 Nm Max. 212 W Axial Connector 7-72 VDC |
20: ø14x35.1 w/ 5x5 Key Shaft: IP65 - Sealing Motor: IP65 - Painted Rear: ø10 D-cut |
C4: 1xPG12 1m cable free end | S8: SMC85 Controller with STO | S: 2600 mA. | |||||||
| MIS234S: 56.4x161 mm Holding Torque: 3.08 Nm Max. 212 W Radial Connector 7-72 VDC |
21: ø19x55.4 w/ 6x6 Key Shaft: IP65 - Sealing Motor: IP65 - Painted |
I1: Power+RS485 | T8: SMC85 Controller, Coated PCB with STO | T: 3000 mA. | |||||||
| MIS340C: 86.4x95 mm Holding Torque: 3.0 Nm Max. 260 W Radial Connector 12-80 VDC |
22: ø19x55.4 w/ 6x6 Key Shaft: IP42 Motor: IP42 |
W0: PG12 (A) 8xIOA/RS485 | P8: SMC85 Controller, Potted PCB | ||||||||
| MIS340L: 86.4x95 mm Holding Torque: 3.0 Nm Max. 260 W Radial Connector 12-80 VDC, Isolated from earth |
25: ø6.35x20 Round Shaft: IP42 Motor: IP42 Rear: IP65 - Sealing |
W1: PG12 (A) 8xIOA/RS485 + Power | Q8: SMC85 Controller, Potted PCB + STO | ||||||||
| MIS341C: 86.4x125 mm Holding Torque: 6.0 Nm Max. 288 W Radial Connector 12-80 VDC |
26: ø10x20 Round Shaft: IP65 - Sealing Motor: IP65 - Painted |
FP: Profibus | R8: SMC85 Controller, Coated PCB with STO + Cable | ||||||||
| MIS341L: 86.4x125 mm Holding Torque: 6.0 Nm Max. 288 W Radial Connector 12-80 VDC, Isolated from earth |
27: ø9.53x30.5 D-cut Shaft: IP42 Motor: IP42 - Potted |
Z3: Rubber seal side (x2) 1m | |||||||||
| MIS342C: 86.4x155 mm Holding Torque: 9.0 Nm Max. 315 W Radial Connector 12-80 VDC |
28: ø14x35.1 w/ 5x5 Key Shaft: IP65 - Sealing Motor: IP65 - Painted + Potted |
P6: 2xCANopen, 8xIOA/RS422+485 | |||||||||
| MIS342L: 86.4x155 mm Holding Torque: 9.0 Nm Max. 315 W Radial Connector 12-80 VDC, Isolated from earth |
31: Hollow Outer ø15/Inner ø12 Shaft: IP42 Motor: IP42 |
Q9: 8xIOA/RS422+485, SSI | |||||||||
| MIS343C: 86.4x185 mm Holding Torque: 12.0 Nm Max. 320 W Radial Connector 12-80 VDC |
32: Hollow w/ Key Outer ø15/Inner ø12 Shaft: IP42 Motor: IP42 |
Q5: 2xRS485, 8xIOA/RS422+485 | |||||||||
| MIS343L: 86.4x185 mm Holding Torque: 12.0 Nm Max. 320 W Radial Connector 12-80 VDC, Isolated from earth |
33: ø10x20 Round Shaft: IP42 Motor: IP65 - Painted |
EC: EtherCAT | |||||||||
| MIS430C: 110x146 mm Holding Torque: 10.0 Nm Max. 300 W Radial Connector 12-80 VDC |
34: Hollow Outer ø15/Inner ø12 Shaft: IP65 - Sealing Motor: IP65 - Painted |
EL: Powerlink | |||||||||
| MIS430L: 110x146 mm Holding Torque: 10.0 Nm Max. 300 W Radial Connector 12-80 VDC, Isolated from earth |
35: ø8x24 w/ 3x10 Key Shaft: IP42 Motor: IP42 |
EI: EtherNet/IP | |||||||||
| MIS431C: 110x196 mm Holding Torque: 18.65 Nm Max. 300 W Radial Connector 12-80 VDC |
36: ø9.53x30.5 D-cut Shaft: IP42 Motor: IP42 Rear: Brake IP00 |
EP: Profinet | |||||||||
| MIS431L: 110x196 mm Holding Torque: 18.65 Nm Max. 300 W Radial Connector 12-80 VDC, Isolated from earth |
37: ø9.53x30.5 D-cut Shaft: IP42 Motor: IP42 Rear: Brake IP42 - Cover |
EM: ModbusTCP/UDP | |||||||||
| MIS432C: 110x247 mm Holding Torque: 25.0 Nm Max. 500 W Radial Connector 12-80 VDC |
38: ø9.53x30.5 D-cut Shaft: IP65 - Sealing Motor: IP65 - Painted Rear: Brake IP65 - Cover |
ES: SercosIII. | |||||||||
| MIS432L: 110x247 mm Holding Torque: 25.0 Nm Max. 500 W Radial Connector 12-80 VDC, Isolated from earth |
49: ø14x30.5 w/ 5x5 Key Shaft: IP42 Motor: IP42 |
E2: EtherCAT + SSI | |||||||||
| MIS512C: 134 mm Holding Torque: 40.0 Nm |
50: ø14x30.5 w/ 5x5 Key Shaft: IP65 - Sealing Motor: IP65 - Painted |
E3: EtherNet/IP + SSI | |||||||||
| MIS512L: 134 mm Holding Torque: 40.0 Nm, Isolated from earth |
51: ø6.35x20 Round Shaft: IP42 Motor: IP42 Rear: ø8x42 3x16.5key IP42 |
E4: Powerlink + SSI | |||||||||
| 52: Hollowshaft Outer ø10x24/Inner ø6 Shaft: IP42 Motor: IP42 Rear: ø10x10.5 |
E5: ModbusTCP/UDP + SSI | ||||||||||
| 53: ø6.35x20 D-cut Shaft: IP65 - Sealing Motor: IP65 - Painted |
E6: Profinet + SSI | ||||||||||
| 56: ø6.35x20 Round Shaft: IP65 - Sealing Motor: IP42 |
E7: SercosIII + SSI | ||||||||||
| 57: ø6.35x20 Round Shaft: IP42 Motor: IP42 Rear: Brake IP42 |
FB: Bluetooth 4 pcs M12. 5 pin male(power), 8pin female (RS485), 17 female (IO), Antenna Wireless Bluetooth | ||||||||||
| 58: ø6.35x20 Round Shaft: IP65 - Sealing Motor: IP65 - Painted Rear: Brake IP65 - Cover |
WB: Wireless WLAN or Bluetooth serial MODBUS RTU or MACTALK protocol | ||||||||||
| 59: Hollow shaft Outer ø8/Inner ø6.35 Shaft: IP42 Motor: IP42 |
WI: Wireless Ethernet/IP. WLAN | ||||||||||
| 60: ø14x35.1 Round Shaft: IP65 - Sealing Motor: IP42 |
WM: Wireless MODBUS TCP/UDP. WLAN | ||||||||||
| 61: ø5x20 Round Shaft: IP65 - Sealing Motor: IP65 - Painted |
WP: Wireless Profinet. WLAN | ||||||||||
| 62: ø8x24 w/ 3x10 Key Shaft: IP65 - Sealing Motor: IP65 - Painted |
HP: M23 Hummel Profinet . P can be replaced with S: Sercos , C: Ethercat, L: Powerlink, I: ethernetIP, P:Profinet, M:ModbusTCP/UDP, | ||||||||||
| 63: ø6.35x20 D-cut Shaft: IP67 - Sealing Motor: IP67 - Painted |
H5: M23 Hummel. Functions like Q5 and Q9 | ||||||||||
| 64: ø11x28 w/ 4x4x20 Key, Double BB, Shaft: IP42, Motor: IP42 | HC: M23 Hummel. Functions like Q5 and Q9 with CAN | ||||||||||
| 66: Hollow Inner ø8 w/ 3x10 Pin Shaft: IP42 Motor: IP42 |
JP: M23 JVL connector. Profinet . P can be replaced with S: Sercos , C: Ethercat, L: Powerling, I: ethernetIP, P:Profinet, M:ModbusTCP/UDP, | ||||||||||
| 67: Hollow Inner ø12 w/ Clamp Shaft: IP42 Motor: IP42 |
J5: M23 JVL connector. Functions like Q5 and Q9 | ||||||||||
| 68: ø6.35x20 Round Shaft: IP65 - Sealing Motor: IP65 - Painted Rear: ø8x42 key: 3x16.5 IP54 |
JC: M23 JVL connector. Functions like Q5 and Q9 with CAN | ||||||||||
| 69: Hollow Inner ø8 w/ 3x10 Pin Shaft: IP65 Motor: IP65 |
|||||||||||
| 70: Hollow Inner ø12 w/ Clamp Shaft: IP65 Motor: IP65 |
|||||||||||
| 71: ø14x30.5 Round Shaft: IP42 Motor: IP55 - Not Painted |
|||||||||||
| 71: ø14x30.5 Round Shaft: IP42 Motor: IP55 - Not Painted |
|||||||||||
| 72: ø14x35.1 Round Shaft: IP42 Motor: IP55 - Not Painted |
|||||||||||
| 73: ø9.53x30.5 D-cut Shaft: IP42 Motor: IP55 - Non painted |
|||||||||||
| 74: Hollow shaft Outer ø8/Inner ø6.35 Shaft: IP65 Motor: IP65 |
|||||||||||
| 75: ø6.35x24 D-cut Shaft: IP42 Motor: IP42 |
|||||||||||
| 76: ø6.35x24 D-cut Shaft: IP65 - Sealing Motor: IP65 - Painted |
|||||||||||
| 77: ø6.35x24 D-cut Shaft: IP67 - Sealing Motor: IP67 - Painted |
|||||||||||
| 78: ø19x45 w/ 5x5x25 Key Shaft: IP42 Motor: IP42 |
|||||||||||
| B0: N17 rear mounted brake, ø5mm front shaft IP42 | |||||||||||
| B1: N17 rear mounted brake, ø5mm front shaft IP65 | |||||||||||
| B2: N17 rear mounted brake, ø6.35mm front shaft, d-shape IP42 | |||||||||||
| B3: N17 rear mounted brake, ø6.35mm front shaft, d-shape IP65 | |||||||||||
| B4: N17 rear mounted brake, ø8mm front shaft with keyway IP42 | |||||||||||
| B5: N17 rear mounted brake, ø8mm front shaft with keyway IP65 | |||||||||||
| B6: N23 rear mounted brake, ø6.35 front shaft, round IP42, 1.5Nm | |||||||||||
| B7: N23 rear mounted brake, ø6.35 front shaft, round IP65, 1.5Nm | |||||||||||
| B8: N23 rear mounted brake, ø10 front shaft, round IP42, 1.5Nm | |||||||||||
| B9: N23 rear mounted brake, ø10 front shaft, round IP65, 1.5Nm | |||||||||||
| G1: Front mounted gear, output shaft ø8mm d-cut | |||||||||||
| G2: Front mounted gear, output shaft ø10mm keyway |
Posted in Electronics
By
