Kassow Robots available from Scott Equipment Company

Why Should You Want A Kassow Collaborative Robot?
  • 7th Axis
  • Modular platform CBuns for capability extensions
  • Increased payloads and reach. Payloads up to 18 kg and reach of up to 1800 mm.
  • Seamless end-of-arm tooling that is easy to install and configure
  • Higher Speeds - up to 225 degrees of motion per second
  • Option to extend any kind of software based on efficient C/C++ code using robot API
  • Intuitive programming with touch screen interface
  • Option to prepare and import your own custom code into Kassow's environment
  • Lightweight and nimble
  • ROS Integration
  • Increased production
  • 500Hz Servo loop

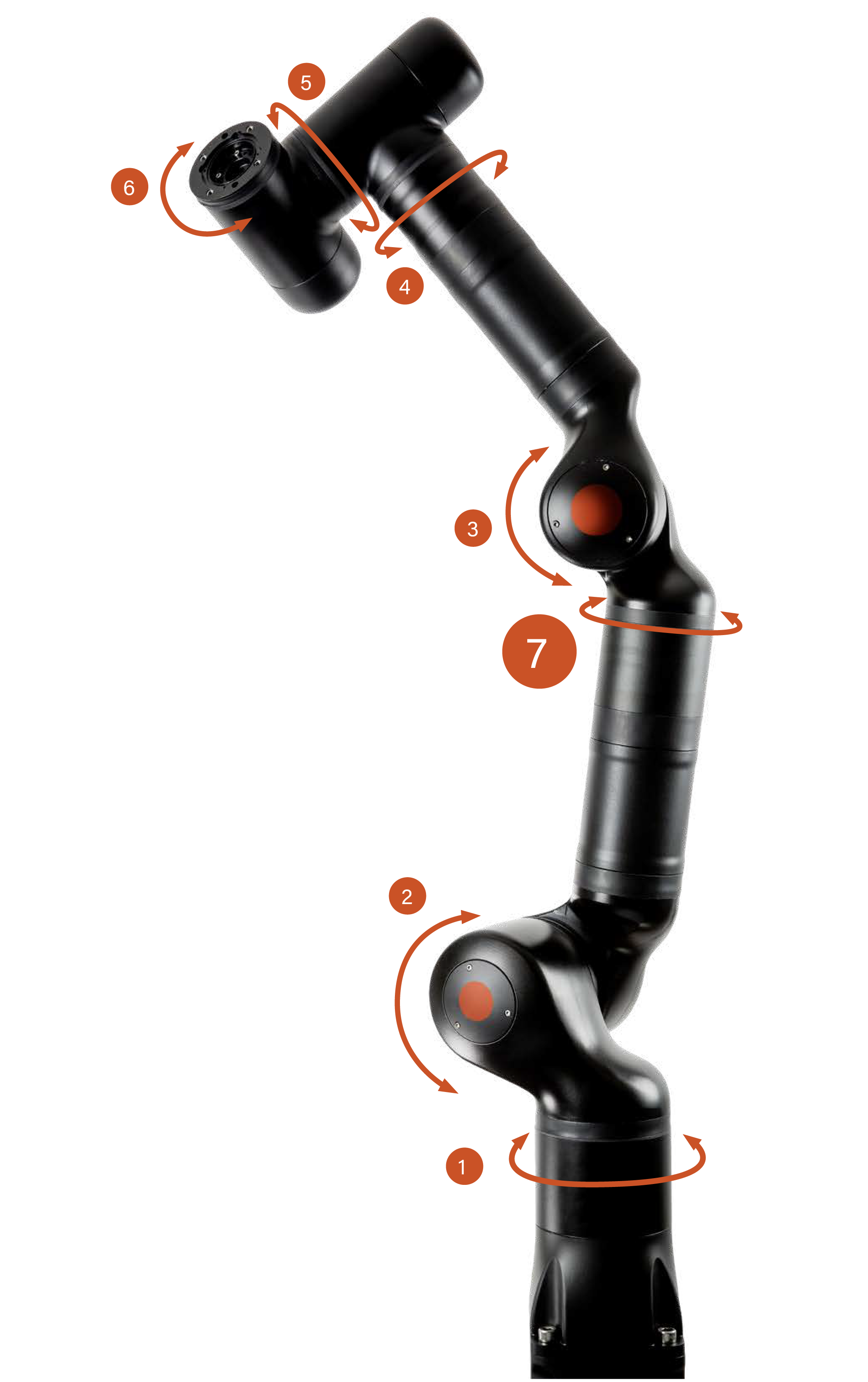

Kassow Robot with 7 Axis from Scott Equipment CompanyBenefits of a 7th Axis

Kassow Robot designed their collaborative robot with a 7th axis allowing it to have more freedom of movement.  The 7th axis allows the robot's arm to mimic the dexterity of the human arm allowing it to reach around corners.

The 7th axis allows the Kassow Robots to perform virtually any production task.  The special kinetics created by the 7th axis allow Kassow Robots to outclass conventional cobots.

Kinematic examples:

  • Any predefined path - straight, zigzag, or curved - can be followed without stopping and at a pre-set speed.
  • The extraordinary maneuverability allows the cobots to be used in confined spaces.
Available Models
Reach/Payload
KR810 850 mm/10kg
KR1018 1000 mm/18kg
KR1205 1200 mm/5 kg
KR1410 1400 mm/10kg
KR1805 1800 mm/5 kg

Kassow Robot Applications
