EX600-EU1-3 SMC EX600 End Plate - U Side, DIN Rail Bracket, Pairs with ED3-3

Sku#: EX600-EU1-3

Contact us for availability.

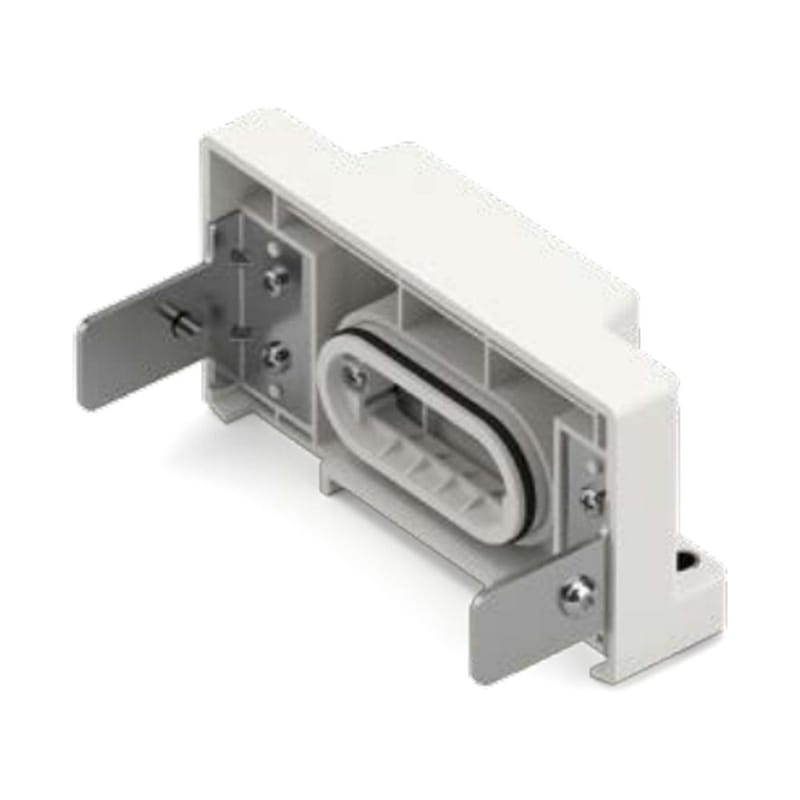

SMC EX600 U-side end plate with waterproof cover and DIN rail mounting bracket, for an EX600 I/O manifold used without valves. Pair with the EX600-ED3-3 D-side end plate.

The SMC EX600-EU1-3 is the U-side end plate for the EX600 fieldbus system with a DIN rail mounting bracket. It is used when the module stack runs as a remote I/O manifold on its own, with no valve manifold connected, and seals the valve-side interface with a waterproof cover. In the EX600 Safety Communication Fieldbus System it can only be connected to the EX600-FV□1 safety I/O module, such as the EX600-FVC1.

Supplied with two M4 x 6 hexagon socket head cap screws. Mounting symbol -3: use with the EX600-ED3-3 D-side end plate so both ends sit on the same DIN rail.

Other versions: EX600-EU1 without bracket, EX600-EU1-2 for the EX600-ED3-2.
