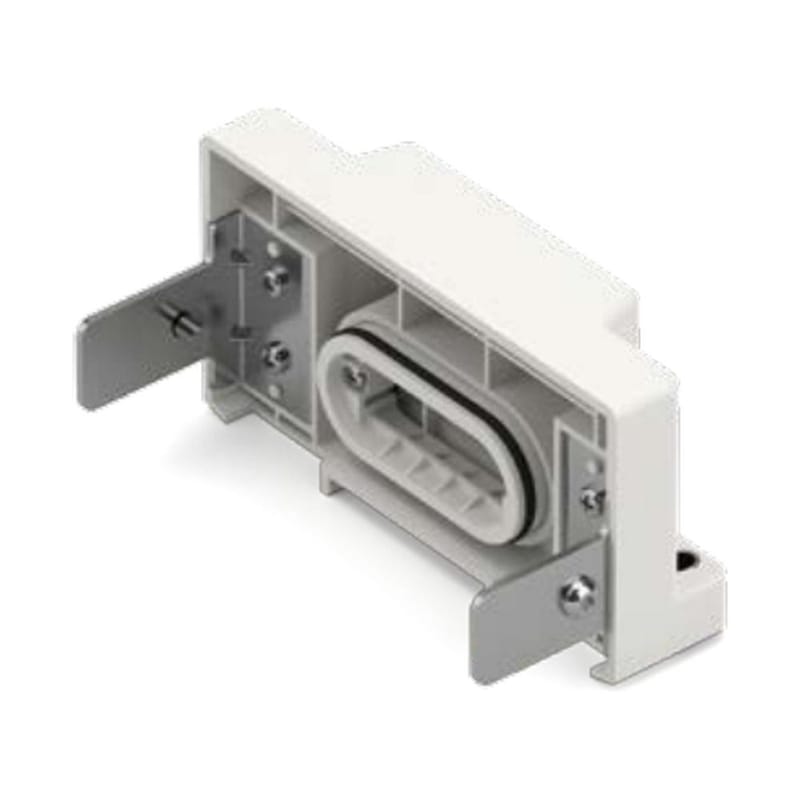

EX600-EU1 SMC EX600 End Plate - U Side, for I/O Manifold Without Valves

Sku#: EX600-EU1

Contact us for availability.
SMC EX600 U-side end plate with waterproof cover. Closes the valve side of an EX600 module stack that is used as a stand-alone I/O manifold with no valve manifold connected. Without DIN rail bracket.

The SMC EX600-EU1 is the U-side end plate for the EX600 fieldbus system. It is used when the module stack runs as a remote I/O manifold on its own, with no valve manifold connected, and seals the valve-side interface with a waterproof cover. In the EX600 Safety Communication Fieldbus System it can only be connected to the EX600-FV□1 safety I/O module, such as the EX600-FVC1, which then works as a safety I/O node without valves.

Supplied with two M4 x 6 hexagon socket head cap screws. Mounting position U side; this version has no DIN rail mounting bracket.

For DIN rail mounted manifolds order the version whose mounting symbol matches the D-side end plate: EX600-EU1-2 with the EX600-ED3-2, or EX600-EU1-3 with the EX600-ED3-3.
