EX600-ED3-3 SMC EX600 End Plate - D Side, 7/8 in 5-Pin Power, DIN Rail Bracket for SY and JSY

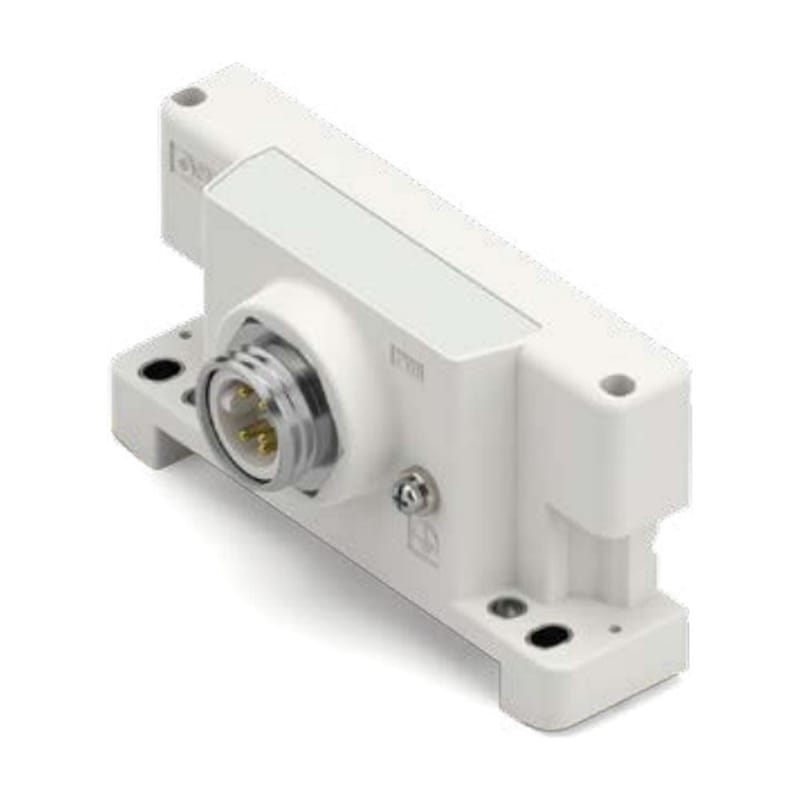

The SMC EX600-ED3-3 is the D-side end plate for the EX600 fieldbus system, supplied with a DIN rail mounting bracket sized for SY and JSY series valve manifolds. It closes the module stack opposite the valves and brings power in through a single 7/8 inch 5-pin plug, so one cable supplies both the control/input circuit (US1) and the drive circuit (US2) of every module and valve on the manifold, including the EX600 Safety Communication Fieldbus System.

Power connector PWR IN 7/8 inch (5-pin) plug, no PWR OUT. Rated 24 VDC, US1 8 A max. and US2 8 A max. Enclosure IP67 (depends on the manifold it is mounted to), weight 175 g plus bracket, operating temperature -10 to +50 °C.

When the manifold is DIN rail mounted, choose the matching U-side end plate or valve-side bracket with the same mounting symbol (-3). Without bracket: EX600-ED3. For VQC manifolds: EX600-ED3-2.
