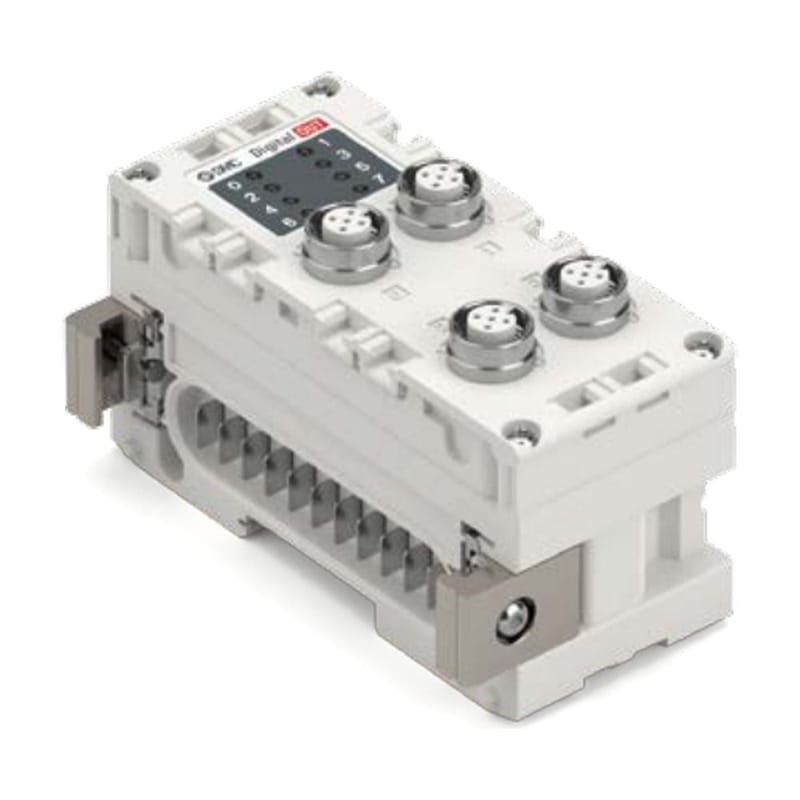

EX600-DYPB SMC EX600 Digital Output Module - 8 PNP Outputs, 4 x M12

The SMC EX600-DYPB is an 8-point digital output module for the EX600 fieldbus system. It mounts in the general purpose I/O section of an EX600 manifold, including the EX600 Safety Communication Fieldbus System with the EX600-BEN1 fieldbus module, where up to nine general purpose modules can be fitted in any order.

8 PNP outputs on four M12 5-pin sockets (two outputs per connector; M12 4-pin plugs also fit). Powered from US2 (drive supply), max. load 2 A per module and 0.5 A per output, with short-circuit protection. Current consumption 50 mA max. from US1.

Enclosure IP67 (depends on the manifold it is mounted to), weight 300 g, operating temperature -10 to +50 °C. Seal caps are not included; fit one on every unused connector.
