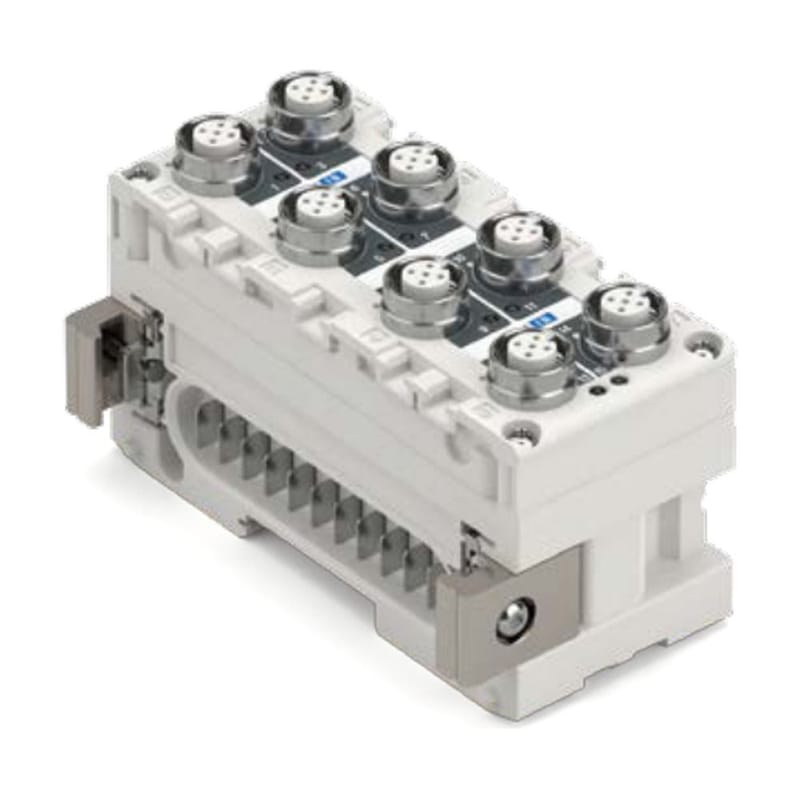

EX600-DXPD SMC EX600 Digital Input Module - 16 PNP Inputs, 8 x M12

The SMC EX600-DXPD is a 16-point digital input module for the EX600 fieldbus system. It mounts in the general purpose I/O section of an EX600 manifold, including the EX600 Safety Communication Fieldbus System with the EX600-BEN1 fieldbus module, where up to nine general purpose modules can be fitted in any order.

16 PNP inputs on eight M12 5-pin sockets (two inputs per connector; M12 4-pin plugs also fit). Powered from US1 (control/input supply), 2 A per module and 0.5 A per connector, with short-circuit protection. Input current typ. 8.7 mA, ON voltage 17 V or more, OFF voltage 5 V or less. Current consumption 70 mA max.

Enclosure IP67 (depends on the manifold it is mounted to), weight 340 g, operating temperature -10 to +50 °C. Seal caps are not included; fit one on every unused connector.
