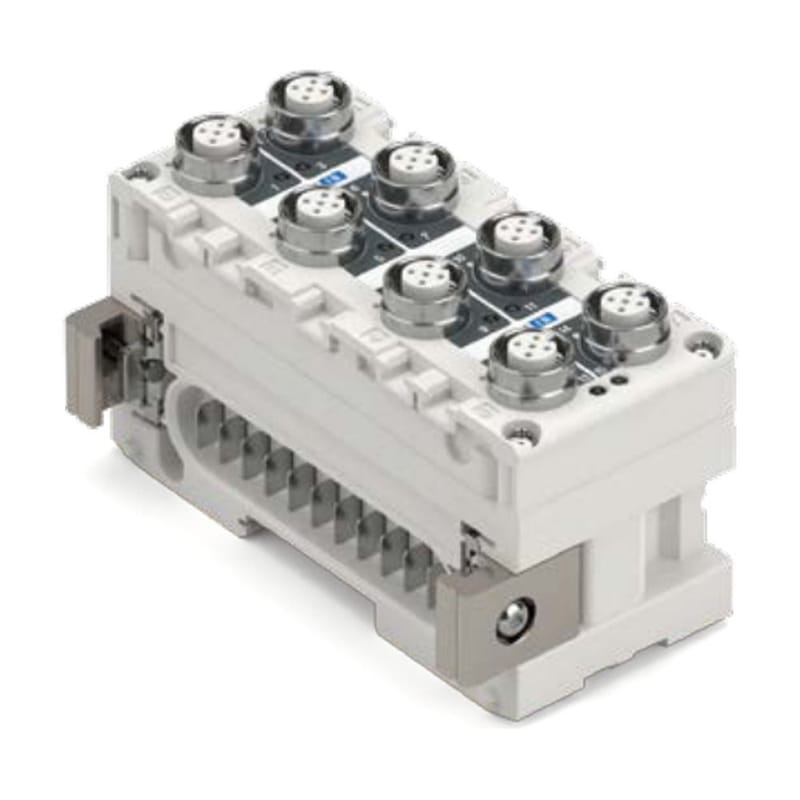

EX600-DXPC SMC EX600 Digital Input Module - 8 PNP Inputs, 8 x M8

The SMC EX600-DXPC is an 8-point digital input module for the EX600 fieldbus system. It mounts in the general purpose I/O section of an EX600 manifold, including the EX600 Safety Communication Fieldbus System with the EX600-BEN1 fieldbus module, where up to nine general purpose modules can be fitted in any order.

8 PNP inputs on eight M8 3-pin sockets, one input per connector. Powered from US1 (control/input supply), 2 A per module and 0.25 A per connector, with short-circuit protection. Input current typ. 8.7 mA, ON voltage 17 V or more, OFF voltage 5 V or less. Current consumption 55 mA max. Tighten M8 plugs to 0.2 N·m ±10%; more can damage the connector threads.

Enclosure IP67 (depends on the manifold it is mounted to), weight 275 g, operating temperature -10 to +50 °C. Seal caps are not included; fit one on every unused connector.
