Unlocking Efficiency with Murrplastik Cable Entry Solutions

Scott Equipment Company is your one-stop source for top-notch products that are essential to streamline operations. Murrplastik's cable entry systems are designed for easy installation, optimal space usage, and robust protection. Here’s a look at their key offerings:

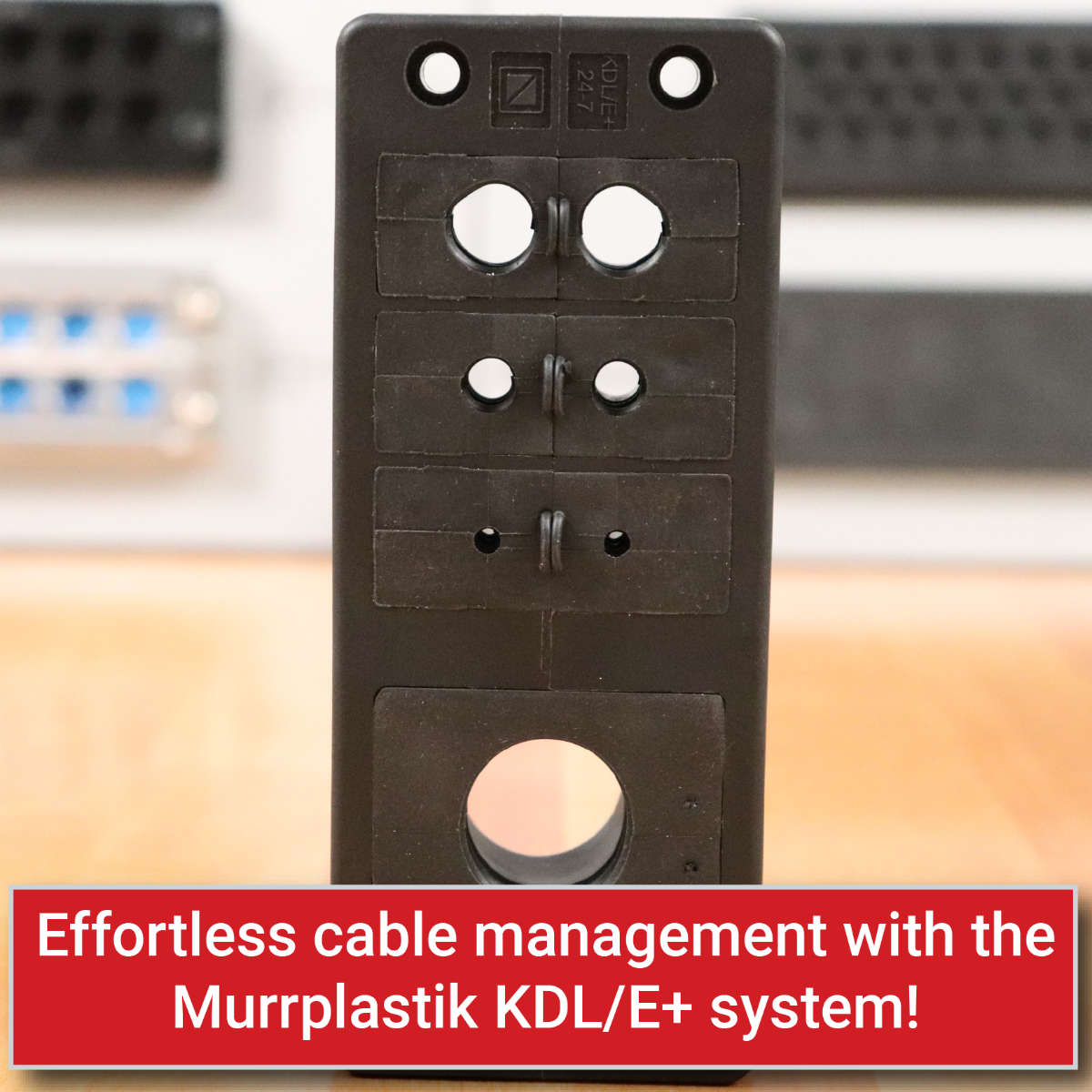

KDL/E+ Cable Entry System

Designed to meet the demanding needs of panel shops and OEMs in the industrial automation industry, the KDL/E+ series ensures fast, efficient, and reliable installation and routing of both connectorized and non-connectorized cables into enclosures.

Features:

• Splittable Frames -The frames consist of at least two pieces and are screwed together using stainless steel screws (M5)

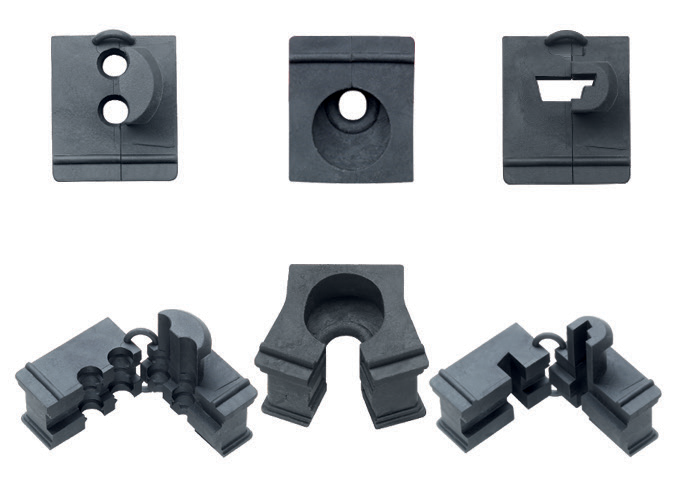

• Splittable Grommets - The splittable grommets are available for cable ODs from 3mm - 32mm, conduit sizes M10 - M25 as well as in specialty variants.

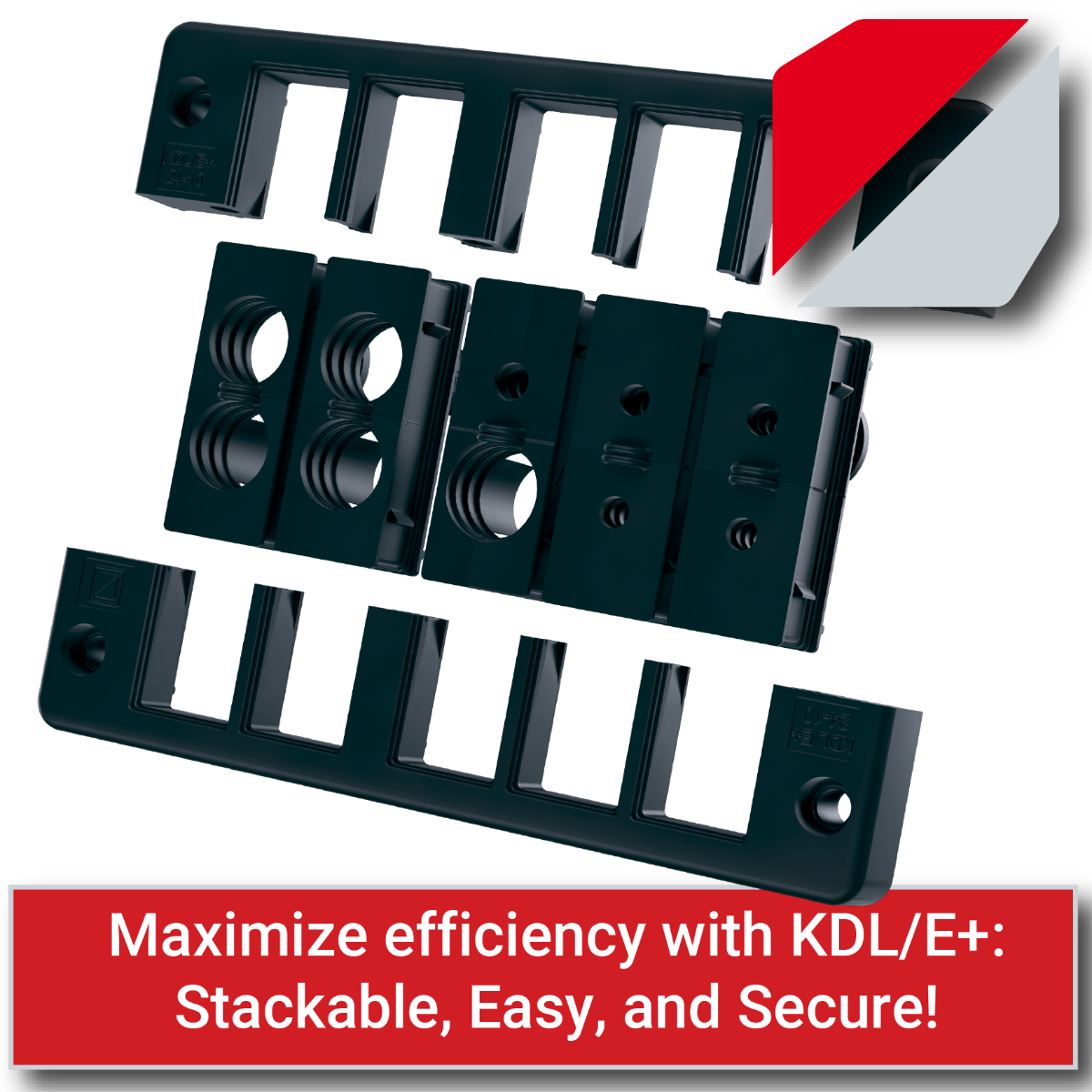

• Modular Frames - By using additional center parts, the KDL/E+ cable entry frames can be stacked providing the option to easily increase the standard frame sizes
• Modular Grommets - Small grommets (3-16mm cable OD + specialty grommets) and large grommets (16-32mm + specialty grommets) fit into any frame with grommet openings

Benefits:



• The splittable design allows for use of pre-molded cordsets or connectorized cables without prior removal of the connector
• The frames in conjunction with the grommets offer a tight seal without the use of an additional gasket
• The grommets are equipped with a strain relief tab allowing for a better fixation of cables, wires and hoses by using cable ties
• Existing KDL/E cable entry system customers can easily upgrade to the KDL/E+ as KDT/ZE grommets are also compatible.

KDL/E Cable Entry System

The KDL/E cable entry system represents further development of the third KDL generation. The advantage of the KDL/E system is that it allows for quicker assembly at double the capacity. Optionally, the KDL/E can be snapped in.

Features:

• Split System: Allows pre-assembled cables to be routed without disassembly.
• Ease of Use: Fits standard cut-outs from Harting and Wieland connectors.
• Strain Relief: Integrated with cable ties for secure cable management.
• EMC Compliance: Includes an EMC discharge plate for easy implementation.

Benefits:

• Time-Efficient: Quick installation saves significant setup time.
• Cost-Effective: Reduces installation costs by eliminating the need for disassembly.
• Flexible: Compatible with various connector sizes and configurations.

KDL Cable Entry System

The KDL cable entry system is a split system that allows pre-assembled cables to be routed into an enclosure without disassembling the connectors.

Features:

• Versatile Design: Suitable for cables from 3-29 mm in diameter.
• Robust Construction: Self-extinguishing grommets (UL 94 V0) for enhanced safety.
• Tool-Free Installation: No tools required for mounting or unmounting.

Benefits:

• Enhanced Safety: Fire-resistant grommets ensure compliance with safety standards.
• Simplified Installation: Tool-free design simplifies the mounting process.
• Reliable Protection: Strain relief ensures cables remain securely in place.

Cable Entry Plate Systems

The cable entry plate system represents an alternative to cable fittings. Cables can be installed in seconds using this system. This represents enormous savings potential, both during panel installation and insertion and feed-through of the cable. Versions are available in plastic, aluminum or stainless steel.

Features:

• Quick Installation: Plates designed for cables without connectors.
• High Compatibility: Fits a wide range of cable diameters.

Benefits:

• Rapid Setup: Significantly reduces installation time and effort.
• Cost Savings: Minimizes the need for additional accessories.

Conclusion

Murrplastik’s cable entry solutions are invaluable for any industrial automation setup, offering reliability, flexibility, and significant time and cost savings. Explore their comprehensive range of products to optimize your operations today.

For more information, visit Murrplastik Cable Entry.

---
