Automation Simplified - Murrelektronik Mico Pro
Friday, March 5, 2021 12:05:25 PM America/New_York

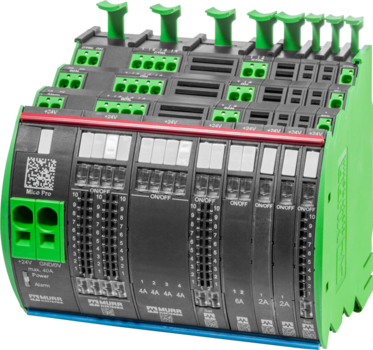

The Murrelektronik Mico Pro is an innovative current monitoring system from Murrelektronik for 12 and 24 VDC applications with a patented tripping process. The Mico Pro's modular system enables you to adapt systems precisely to suit specific applications - offering a favorable cost-benefit ratio while also being economical in their use of space. The patented tripping process assures optimum machine availability. An additional benefit: an integrated concept for potential distribution that significantly declutters the switch cabinet wiring.
You can select between modules with one, two, or four output channels. On the Fix modules, the tripping currents (2, 4, 6, 8, 10 and 16 A) are fixed which makes them a tamper-proof solution. On the Flex modules, the tripping current can be adjusted at the touch of a button from 1 to 10 A or from 11 to 20 A. Their narrow width of 8, 12, or 24 millimeters enables significant savings in space. Up to 30,000 Microfarad can be loaded per channel. So, it is possible to monitor a number of high capacitive loads with one device.
The Murelektronik Mico Pro can be cascaded. This means on a Mico channel with a tripping current of more than 10 A, another Mico Pro station can be connected.
Mico Pro available with integrated power supply
New switch-mode power supplies with an output current of 5 or 10 A can be integrated directly into Mico-Pro stations. This combination creates more space inside the control cabinet because it replaces the power module. The switch-mode power supply continues to support features like general alarm message, 90 percent early warning, control signal for remote maintenance. You can also supply up to 20 A of power by enabling the parallel mode. Energy efficiency is high, keeping control cabinet temperatures low. With practical bridges that snap in, the switch-mode power supply devices can be connected to the monitoring modules in a few easy steps, without the need for extra wiring.
Mico Pro stands for
- Modularity - precise right down to the last channel
- Integrated potential distribution concept - significantly simplifies switch cabinet wiring
- Practical handling - assembly without tools
- Diagnostics - on the module or via the PLC
- Channel-specific switching - replaced the coupling level

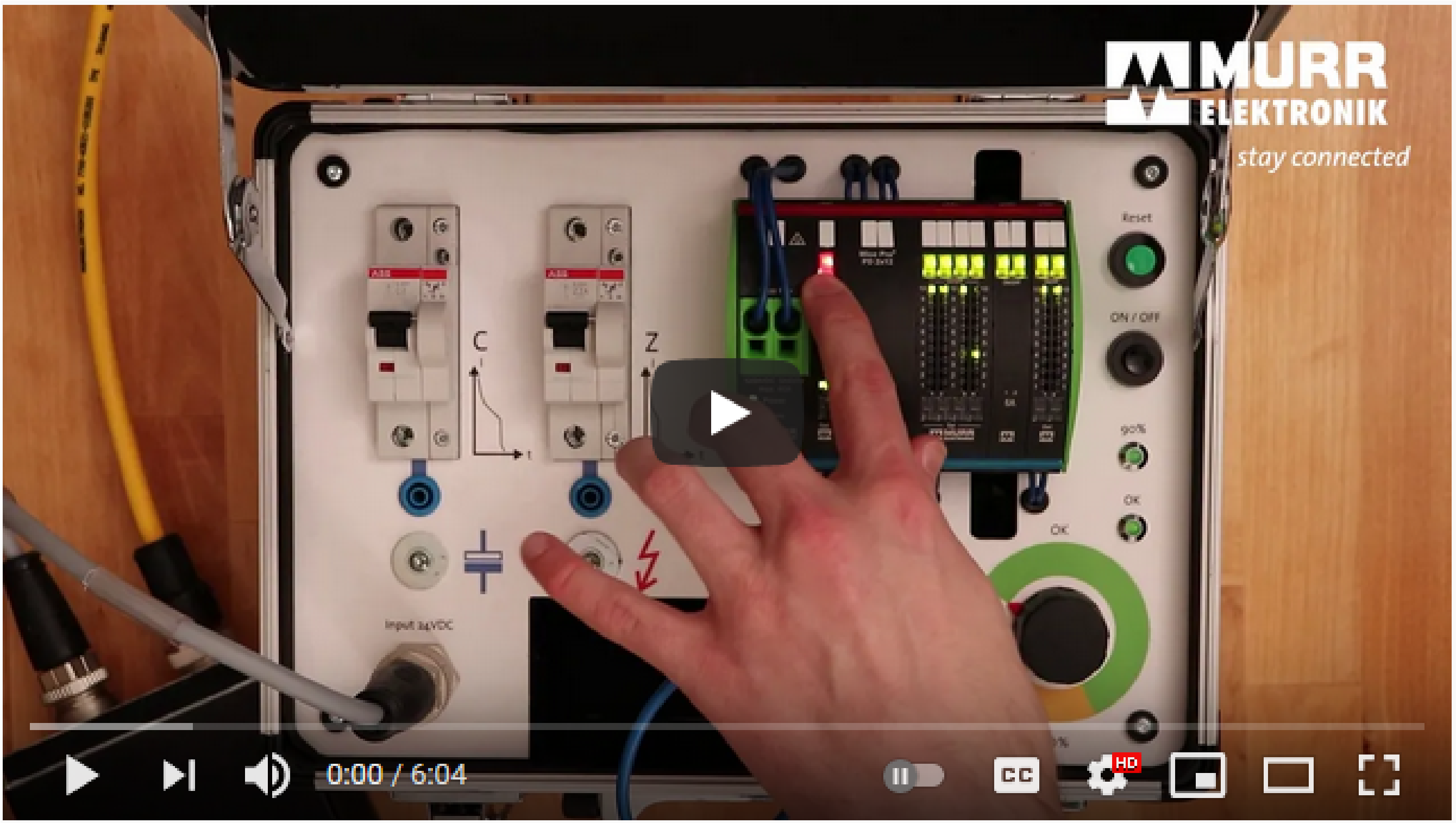

Click the image below to watch our Automation Simplified video on the Murrelektronik Mico Pro.
Contact your local Scott Equipment Company Account Manager, email us or call 800-222-2903 with any questions about the Murrelektronik Mico Pro.
