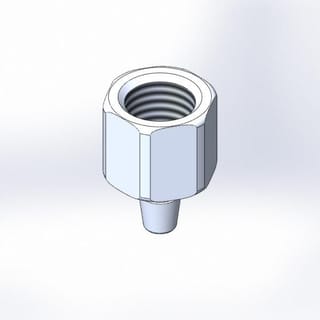

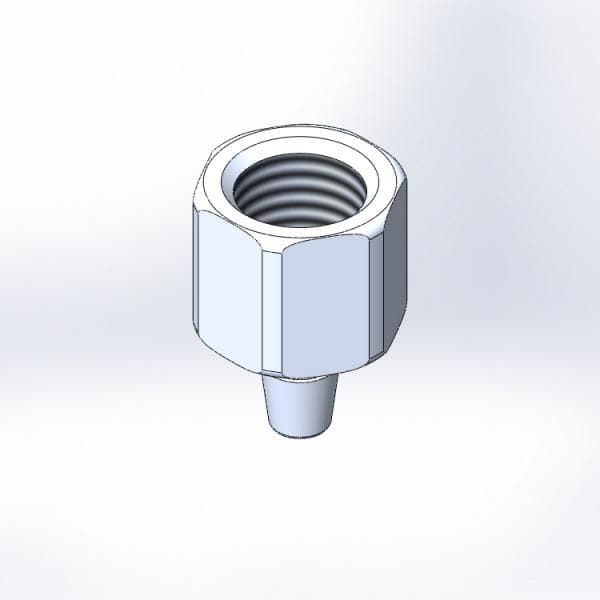

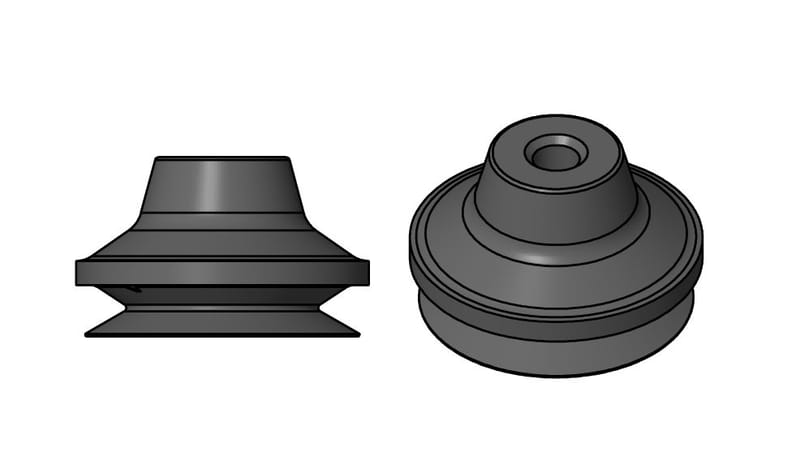

XP-B50-V-18F Edco Bellows Vacuum Cup with fitting

Edco Bellows vacuum cups are used when it is necessary to compensate for varying workpiece heights, to handle parts with uneven (concave, convex, or textured) surfaces, or easily damaged parts. A lifting effect during evacuation can be used to help separate a top sheet from those stacked below. Bellows vacuum cups can conform to curved or uneven workpieces such as pipes, bottles, containers, cylinders, car body components, flexing cardboard boxes, etc. Bellows vacuum cups
provide height compensation and a ball-join motion through a limited angular range.

Suitable Workpiece Surface:
• Flat
• Slightly Concave
• Convex
• Compound
• Spherical
• Cylindrical
• Flexible
• Shear Loads
