XP-B40-N-G38MDF Edco Bellows Vacuum Cup with dual flow valve

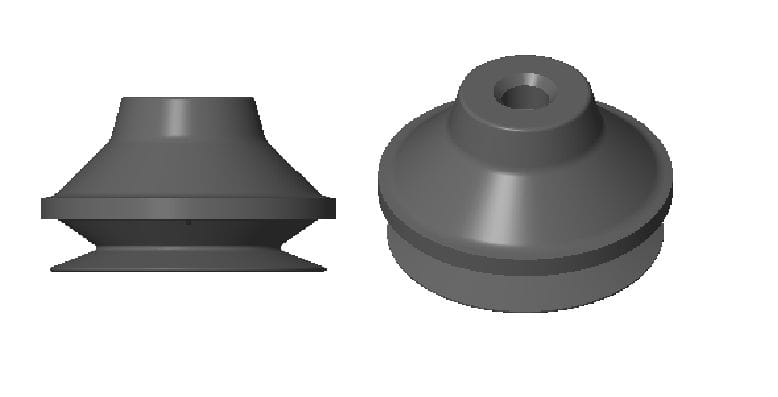

Edco Bellows vacuum cups are used when it is necessary to compensate for varying workpiece heights, to handle parts with uneven (concave, convex, or textured) surfaces, or easily damaged parts. A lifting effect during evacuation can be used to help separate a top sheet from those stacked below. Bellows vacuum cups can conform to curved or uneven workpieces such as pipes, bottles, containers, cylinders, car body components, flexing cardboard boxes, etc. Bellows vacuum cups
provide height compensation and a ball-join motion through a limited angular range.

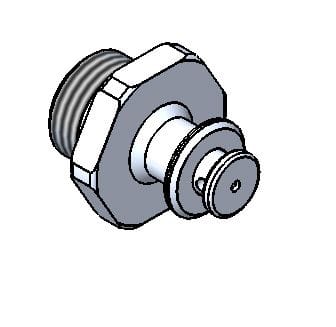

Dual-Flow Valves limit vacuum leakage in a system where some of the vacuum cups may not be in sealing contact with the
work piece. Since vacuum flow is limited by a small orifice, Dual-Flow Valves are only recommended for non-porous parts or
for slightly porous, light-weight parts.

Suitable Workpiece Surface:
• Flat
• Slightly Concave
• Convex
• Compound
• Spherical
• Cylindrical
• Flexible
• Shear Loads
