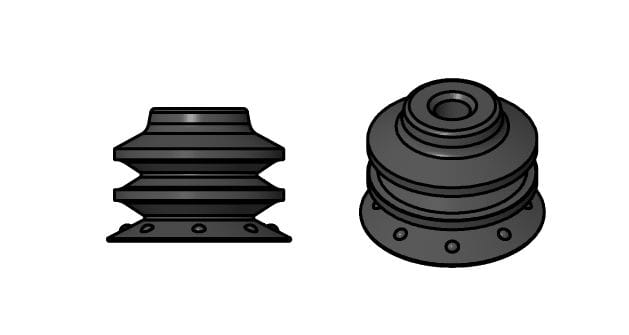

XP-2B25A Edco Double-Bellows Vacuum Cup

Edco Double-bellows vacuum cups provide a longer stroke than single-bellows vacuum cups for greater ability to compensate for varying workpiece heights. This increased ability to compensate for varying heights does come at the cost of stability.

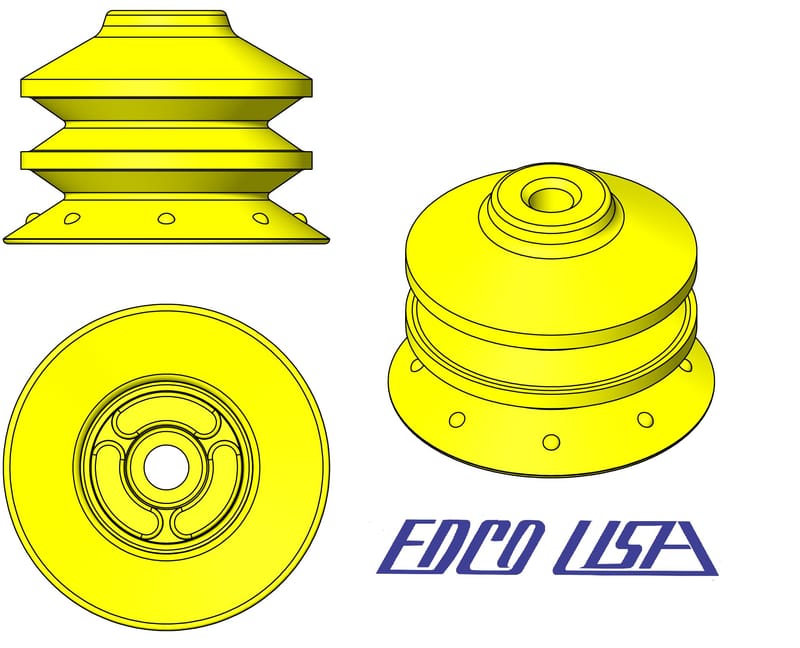

Our double-bellows vacuum cups include bottom cleats to help stabilize the cup when collapsed against a workpiece. The added traction surface increases the ability to withstand lateral shear loads. The cleats also help prevent flexible workpieces from deforming into the center of the cup when subjected to deep vacuum.

Suitable Workpiece Surface:

•    Flat
•    Slightly Concave
•    Convex
•    Compound
•    Spherical
•    Cylindrical
•    Flexible
•    Shear Loads
