WR6-850-10D Enidine Wire Rope Isolator, Threaded
Sku#: WR6-850-10D
Contact us for availability.
Details
More Information
Reviews
The Enidine WR6-850-10D is a wire rope isolator, threaded.

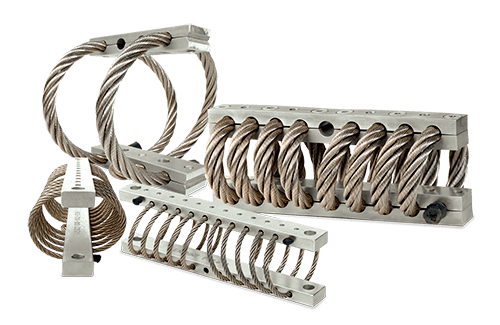

Enidine wire rope isolators use stainless steel cable and RoHS compliant aluminum retaining bars for shock and vibration isolation. Enidine states they are corrosion resistant and unaffected by oil, chemicals, abrasives, ozone and temperature extremes.
Specifications:
| Manufacturer: | Enidine |
| Model: | WR6-850-10D |
| Enidine part number: | WR685010D |
| Series: | WR |
| Type: | WR6-850-10-D THREADED |
| Catalog model: | WR6-850 |
| Number of loops: | 10 |
| Wire rope (cable) diameter: | Ø.188 (4,8) (Ref) |
| Height "H" in. (mm): | 2.13 (54) |
| Height tolerance in. (mm): | ± .13 (± 3,30) |
| Width "W" (Ref) in. (mm): | 2.94 (75) |
| Unit weight Lbs. (Kg): | 0.59 (0,27) |
| Overall length in. (mm): | 5.00 (127,0) |
| Mounting hole spacing in. (mm): | 4.500 (114,3) |
| Mount bar dimension (top view) in. (mm): | .56 (14,3) |
| Mounting holes: | 4X Mounting Holes |
| Mounting option: | D: Thread / Thread (top / bottom bar) |
| Mounting options available for this size: | A, B, C, D, E, S |
| Thread in. (mm): | 1/4-20 UNC (M6 X 1,0) |
| Threaded hole options (ordering code): | [ ] Flush Self Clinching Threaded Insert; [T] Tapped; [H] Helical Insert, Free Running; [L] Helical Insert, Self Locking |
| Max recommended torque: | 38 in.-lbs. (4,3 Nm) (standard threaded insert) |
| Operating temperature range: | -150°F to 500°F (-100°C to 260°C) |
| Compression - Max Static Load Lbs. (N): | 53 (236) |
| Compression - Max Deflection in. (mm): | 1.16 (29,5) |
| Compression - Kv (vibration) Lbs./in. (kN/m): | 470 (82) |
| Compression - Ks (shock) Lbs./in. (kN/m): | 190 (33) |
| 45° Compression/Roll - Max Static Load Lbs. (N): | 40 (177) |
| 45° Compression/Roll - Max Deflection in. (mm): | 1.64 (41,7) |
| 45° Compression/Roll - Kv (vibration) Lbs./in. (kN/m): | 280 (49) |
| 45° Compression/Roll - Ks (shock) Lbs./in. (kN/m): | 100 (18) |
| Shear/Roll - Max Static Load Lbs. (N): | 13 (58) |
| Shear/Roll - Max Deflection in. (mm): | 1.22 (31,0) |
| Shear/Roll - Kv (vibration) Lbs./in. (kN/m): | 60 (11) |
| Shear/Roll - Ks (shock) Lbs./in. (kN/m): | 60 (11) |
- Note: Performance provided for full loop models with standard (302/304) stainless steel cable. Consult Enidine for other options. Do not extrapolate curves.
Source: Enidine 2026 price list; specifications from the Enidine wire rope isolator catalogue (WR6 series, printed page 15 (dimensions), 16 (performance)); enidine.com, Wire Rope Isolators.
