WR28-200-08C Enidine Wire Rope Isolator, Thru Hole/Threaded

The Enidine WR28-200-08C is a wire rope isolator, thru hole/threaded.

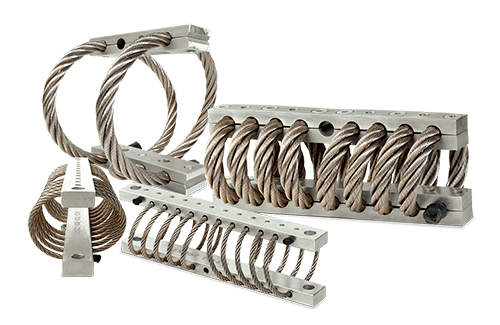

Enidine wire rope isolators use stainless steel cable and RoHS compliant aluminum retaining bars for shock and vibration isolation. Enidine states they are corrosion resistant and unaffected by oil, chemicals, abrasives, ozone and temperature extremes.

Specifications:

Manufacturer:	Enidine
Model:	WR28-200-08C
Enidine part number:	WR2820008C
Series:	WR
Type:	WR28-200-08-C THRU HOLE/THREADED
Catalog model:	WR28-200
Number of loops:	08
Wire rope (cable) diameter:	Ø.875 (22,2) (Ref)
Height "H" in. (mm):	5.25 (133)
Height tolerance in. (mm):	± .25 (± 6,35)
Width "W" (Ref) in. (mm):	5.50 (140)
Unit weight Lbs. (Kg):	18.5 (8,40)
Overall length in. (mm):	14.50 ±.03 (368,3 ±0,8)
Mounting hole spacing in. (mm):	10.500 (266,7); 7.500 (190,5); 3.000 (76,2)
Mount bar dimension (top view) in. (mm):	1.50 (38,1)
Mounting holes:	8X Mounting Holes
Mounting option:	C: Thru / Thread (top / bottom bar)
Mounting options available for this size:	C, D
Thru hole in. (mm):	Ø.531 +.005/-.015 (Ø13,5 +0,13/-0,38)
Thread in. (mm):	1/2-13 UNC (M12 X 1,75)
Threaded hole options (ordering code):	[ ] Tapped; [H] Helical Insert, Free Running; [L] Helical Insert, Self Locking
Max recommended torque:	95 ft.-lbs. (100 Nm) (threaded bar)
Operating temperature range:	-150°F to 500°F (-100°C to 260°C)
Compression - Max Static Load Lbs. (kN):	2,760 (12,28)
Compression - Max Deflection in. (mm):	2.00 (50,8)
Compression - Kv (vibration) Lbs./in. (kN/m):	13,490 (2 362)
Compression - Ks (shock) Lbs./in. (kN/m):	5,770 (1 010)
45° Compression/Roll - Max Static Load Lbs. (kN):	1,960 (8,72)
45° Compression/Roll - Max Deflection in. (mm):	2.85 (72,4)
45° Compression/Roll - Kv (vibration) Lbs./in. (kN/m):	7,700 (1 348)
45° Compression/Roll - Ks (shock) Lbs./in. (kN/m):	2,870 (503)
Shear/Roll - Max Static Load Lbs. (kN):	1,380 (6,14)
Shear/Roll - Max Deflection in. (mm):	2.10 (53,3)
Shear/Roll - Kv (vibration) Lbs./in. (kN/m):	3,530 (618)
Shear/Roll - Ks (shock) Lbs./in. (kN/m):	3,530 (618)

• Note: Performance provided for full loop models with standard (302/304) stainless steel cable. Consult Enidine for other options. Do not extrapolate curves.

Source: Enidine 2026 price list; specifications from the Enidine wire rope isolator catalogue (WR28 series, printed page 29 (dimensions), 30 (performance)); enidine.com, Wire Rope Isolators.
