VQZ1000V-85-1A SMC 24 VDC Conversion Connector Assembly
Sku#: VQZ1000V-85-1A

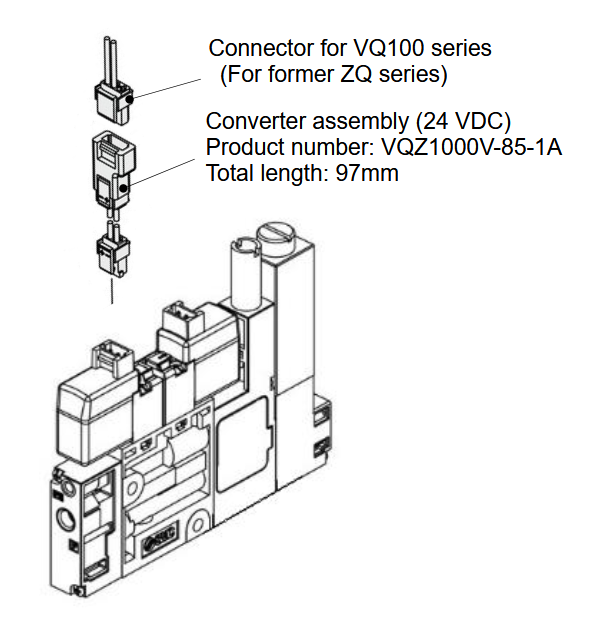

The SMC VQZ1000V-85-1A Conversion Connector Assembly provides an electrical connection solution for maintenance and retrofit applications involving SMC ZQ Series vacuum equipment. Designed for 24 VDC applications, the connector assembly converts the solenoid valve interface from a 3-terminal connection to a 2-terminal connection, allowing select former ZQ Series units equipped with VQ100 Series valves to be replaced with newer ZQ-A Series configurations.
With an overall length of 97 mm, the VQZ1000V-85-1A helps simplify equipment upgrades by providing the required interface between older and newer solenoid valve connection styles. SMC notes that the converter assembly may be ordered separately and that the number of assemblies required depends on the specific ZQ-A solenoid valve configuration.
The VQZ1000V-85-1A is a practical replacement and maintenance component for users upgrading compatible SMC vacuum equipment while retaining existing electrical connections.
For additional pneumatic, vacuum, motion control, and automation products from SMC, visit the SMC manufacturer page at Scott Equipment Company.
Key Product Features:
- SMC part number VQZ1000V-85-1A
- 24 VDC conversion connector assembly
- Converts 3-terminal to 2-terminal solenoid valve connections
- Designed for select former ZQ Series / VQ100 Series retrofit applications
- Supports replacement with compatible ZQ-A Series configurations
- Overall length: 97 mm
- Available as a separately ordered SMC replacement component
