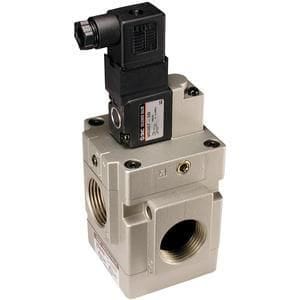

VG342-5DZ-06NA-Y SMC 3-Port Solenoid Valve

SMC VG342-5DZ-06NA-Y Solenoid Valve – High-Flow, 3-Port Pilot-Operated Poppet Valve for Reliable Air Control



The SMC VG342-5DZ-06NA-Y is a robust, high-flow 3-port solenoid valve designed for reliable, large-volume air control in industrial systems. This pilot-operated poppet-style valve is engineered to handle high flow rates with low internal leakage, making it ideal for controlling actuators, blow-off circuits, and isolation of pneumatic lines in heavy-duty applications.



Equipped with a 1/4" pilot port and 3/4" port size (Rc thread), this model features a DZ electrical entry, 06NA thread type, and a Y-type manual override. Its durable construction and flexible mounting options make it suitable for a wide range of operating conditions, including those requiring high responsiveness and long service life.



Key Features:

• Valve Type: 3-port, normally closed

• Operation: Pilot-operated poppet valve

• Port Size: 3/4" Rc thread

• Pilot Port: 1/4"

• Electrical Entry: DZ type (DIN terminal)

• Thread Type: 06NA (Rc)

• Manual Override: Y-type (locking push-turn type)

• High Flow Capacity: Suitable for controlling large actuators and air circuits

• Low Internal Leakage: Ensures efficient, clean switching

• Compact Design with High Reliability: Optimized for industrial environments and demanding duty cycles



The VG342-5DZ-06NA-Y is part of SMC's VG series, trusted for its rugged performance in automation, material handling, and manufacturing systems requiring fast, precise air control with minimal maintenance.
