TD-6220 Alkon Corporation Trans-DOT 3/2 Single Air Pilot Spring Return
Sku#: TD-6220
Contact us for availability.
Details
Resources
More Information
Reviews

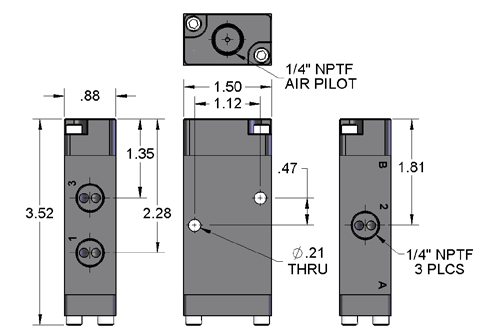

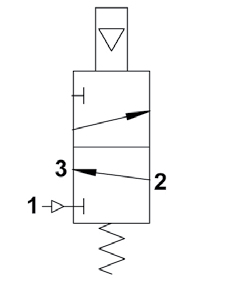

Alkon Corporation TD-6220 Series valves are 3-way, 3/8" NPT, 3-ported, 2-position, single air pilot valves with spring return. Air is normally closed when supplied to the #1 port. Air is normally open when supplied to the #3 port.
Specifications
| Material | Black anodized aluminum, urethane seals | Temperature | -40F to +180F |
| Function | 3/2 single air pilot, spring return | Pilot Pressure | 40 psi min |
| Mounting | Inline, or Thru hole mount | ||
| Medium | Air | ||
| Pressure | 200 psi max. supply | ||
| Flow | Cv = 2.0 (96 scfm fully open) | ||
| Fasteners | Stainless Steel |
