TD-4280-R Alkon Corporation Trans-DOT 3/2 Push-In/Spring-Out Manual Valve, Red Knob

Sku#: TD-4280-R

Contact us for availability.
Alkon Corporation TD-4280-R valves are 3-way, 1/4" NPT, 3-ported, 2-position, push-in/spring-out manual valves with a red mushroom knob. Air is normally supplied to port #1 with #3 as the exhaust. The valve is momentary: it passes air only while the knob is held in, and the spring returns it when released.

Alkon Corporation TD-4280-R valves are 3-way, 1/4" NPT, 3-ported, 2-position, push-in/spring-out manual valves with a red mushroom knob. Air is normally supplied to port #1 with #3 as the exhaust. The valve is momentary: it passes air only while the knob is held in, and the spring returns it when released.

Specifications

Material Black anodized aluminum, urethane seals Temperature -40F to +180F
Function 3/2 push-in/spring-out Knob Red mushroom, 1.81" dia.
Mounting Panel mount, Inline, or Thru hole mount Panel Mount 7/8-14 thread, 1-1/4" hex nut
Medium Air
Pressure 200 psi max. supply
Flow Cv = 1.0 (48 scfm fully open)
Fasteners Stainless steel

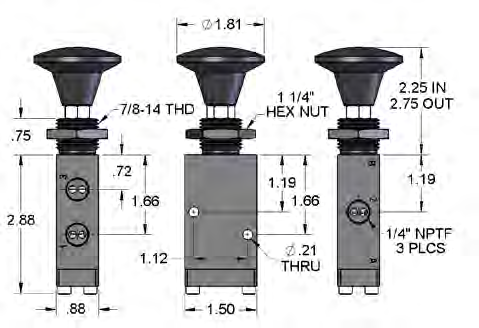

Alkon Corporation TD-4280-R dimensions
