TD-4210-G Alkon Corporation Trans-DOT 3/2 Push-Pull w/Air Pilot Reset, Green Knob

Sku#: TD-4210-G

Contact us for availability.
Alkon Corporation TD-4210-G valves are 3-way, 1/4" NPT, 3-ported, 2-position, push-pull valves detented in the out position with an air-pilot reset, fitted with a green mushroom knob. Air is normally supplied to port #1 but can also be supplied to port #3. A pilot signal of 40 psi or more at the 1/4" NPTF pilot port resets the valve.

Alkon Corporation TD-4210-G valves are 3-way, 1/4" NPT, 3-ported, 2-position, push-pull valves detented in the out position with an air-pilot reset, fitted with a green mushroom knob. Air is normally supplied to port #1 but can also be supplied to port #3. A pilot signal of 40 psi or more at the 1/4" NPTF pilot port resets the valve.

Specifications

Material Black anodized aluminum, urethane seals Temperature -40F to +180F
Function 3/2 push-pull, detented out, w/air-pilot reset Pilot Pressure 40 psi min
Mounting Panel mount, Inline, or Thru hole mount Knob Green mushroom, 1.81" dia.
Medium Air Panel Mount 7/8-14 thread, 1-1/4" hex nut
Pressure 200 psi max. supply
Flow Cv = 1.0 (48 scfm fully open)
Fasteners Stainless steel

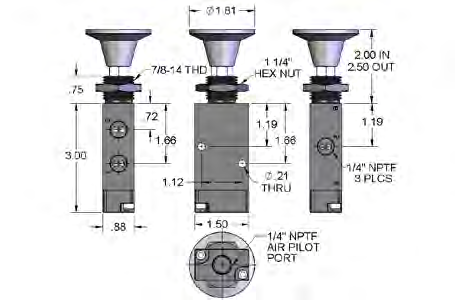

Alkon Corporation TD-4210-G dimensions
