T52QA02 Baco 30mm Twin Touch Flush/Flush Green/Red Black Bezel Pushbutton with I/O Symbols
Sku#: T52QA02
Contact us for availability.
Details
More Information
Reviews

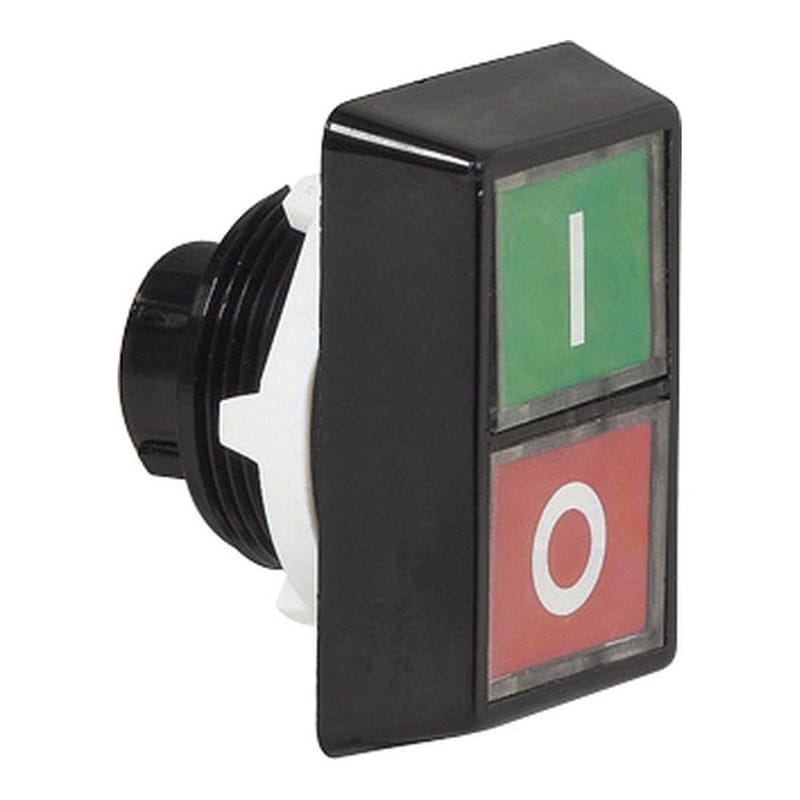

The Baco T52QA02 is a 30mm Twin Touch Flush/Flush Green/Red Black Bezel Pushbutton with I/O Symbols.
Operator head only. To build a complete device, add a mounting clip and contact blocks — see 30mm clips and 30mm contact blocks and LED modules.
- Two or three buttons in a single panel hole
- Modular head, clip and contact block design
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | T52QA02 |
| Device Type: | Twin / Triple Touch Pushbutton |
| Size: | 30 mm |
| Configuration: | Component |
| Illumination: | Non-Illuminated |
| Function: | Momentary |
| Style: | Twin Flush |
| Color: | Green/Red |
| Bezel Color: | Black |
| Top button: | Green, "I" symbol |
| Bottom button: | Red, "O" symbol |
General Specifications:
| Degree of protection: | IP65 |
| NEMA type: | 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +70 °C |
| Mechanical life: | 3,000,000 operating cycles (spring return) |
| Contact blocks and LED modules: | Same as 22 mm heads |
Source: Baco Controls catalog 803, technical specifications.
