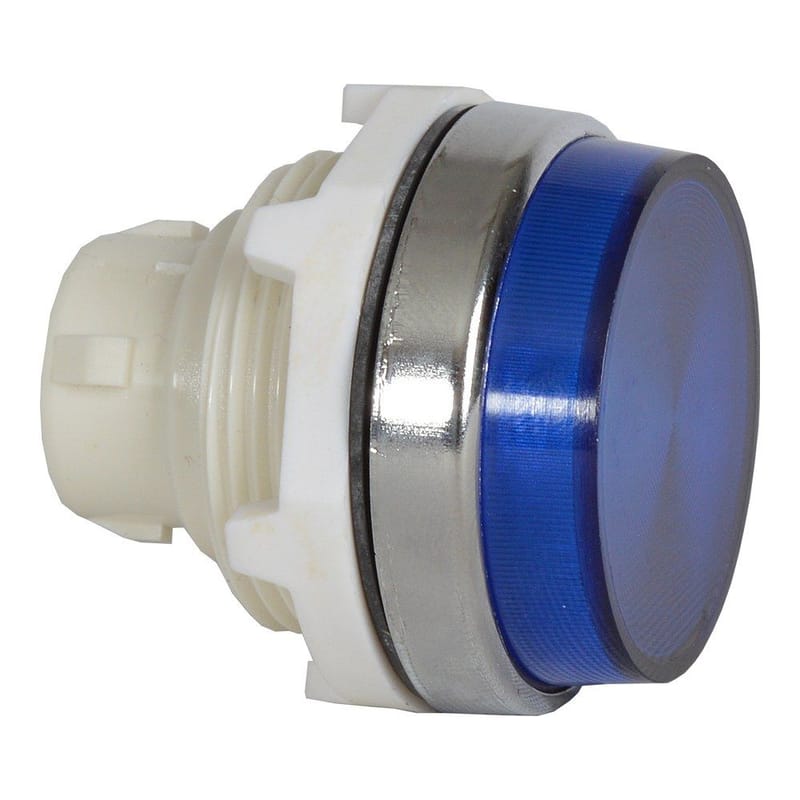

T15SA60 Baco 30mm Blue Head Ribbed Lens Chrome Bezel Pilot Light

The Baco T15SA60 is a 30mm Blue Head Ribbed Lens Chrome Bezel Pilot Light.

Operator head only. To build a complete device, add a mounting clip and an LED module — see clips, contact blocks and LED modules.

• Bright, long-life LED indication
• Mounts in a standard panel hole like any operator

Specifications:

Manufacturer:	Baco Controls
Part Number:	T15SA60
Device Type:	Pilot Light
Configuration:	Component
Illumination:	Illuminated
Style:	Ribbed Lens
Color:	Blue
Bezel Color:	Chrome

General Specifications:

Degree of protection:	IP66, IP69 and IP69K
NEMA type:	1, 2, 3, 3R, 3S, 4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Impact protection:	IK05
Approvals:	UL 508 / CSA 22.2 (US and Canada), Bureau Veritas

Source: Baco Controls catalog 803, technical specifications.
