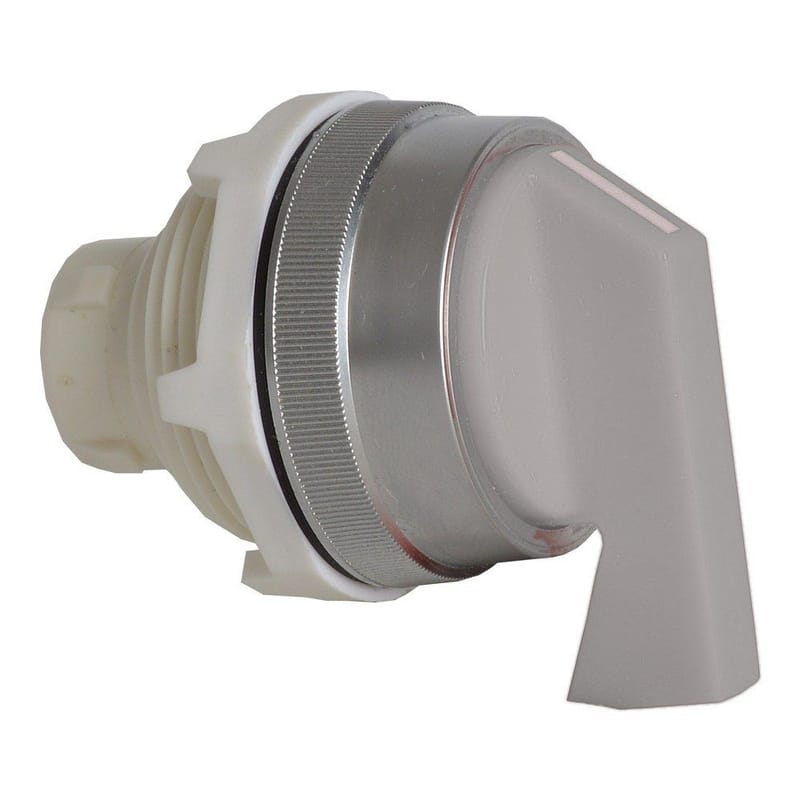

T11MS08 Baco 30mm Grey 3 Position Momentary/Maintained Lever Chrome Bezel Selector Switch

The Baco T11MS08 is a 30mm Grey 3 Position Momentary/Maintained Lever Chrome Bezel Selector Switch.

Operator head only. To build a complete device, add a mounting clip and contact blocks — see 30mm clips and 30mm contact blocks and LED modules.

• Modular head, clip and contact block design
• Contact blocks on the clip set which positions switch which circuits

Specifications:

Manufacturer:	Baco Controls
Part Number:	T11MS08
Device Type:	Selector Switch
Size:	30 mm
Configuration:	Component
Illumination:	Non-Illuminated
Function:	Momentary/Maintained
Number of Positions:	3
Style:	Lever
Color:	Grey
Bezel Color:	Chrome

General Specifications:

Degree of protection:	IP65
NEMA type:	4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Contact blocks and LED modules:	Same as 22 mm heads

Source: Baco Controls catalog 803, technical specifications.
