T11MF20 Baco 30mm Green 3 Position Momentary/Maintained Illuminated Chrome Bezel Selector Switch
Sku#: T11MF20
Contact us for availability.
Details
More Information
Reviews

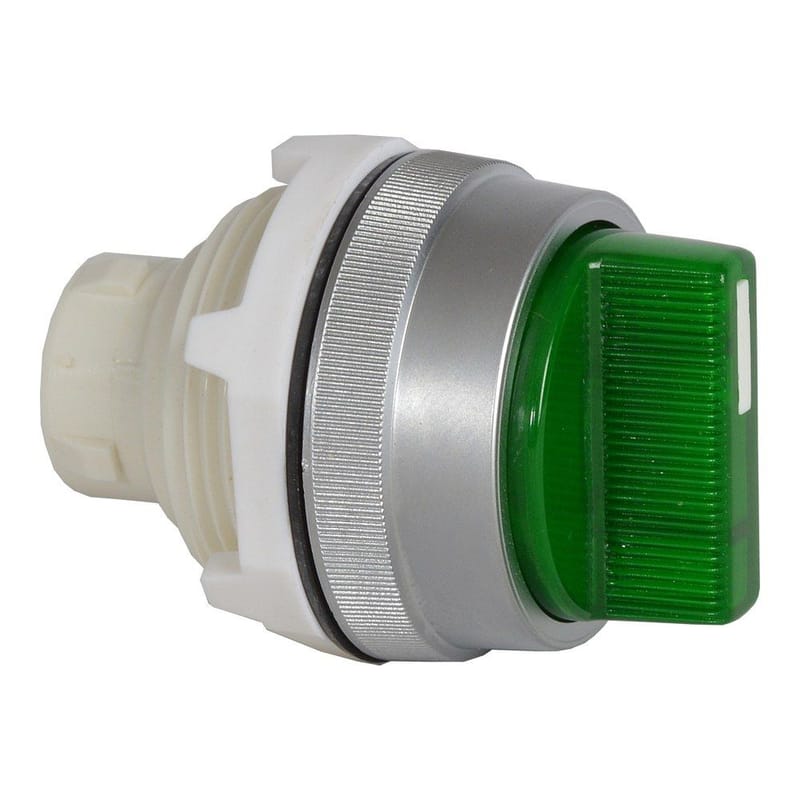

The Baco T11MF20 is a 30mm Green 3 Position Momentary/Maintained Illuminated Chrome Bezel Selector Switch.
Operator head only. To build a complete device, add a mounting clip and contact blocks, plus an LED module to light it — see 30mm clips and 30mm contact blocks and LED modules.
- Modular head, clip and contact block design
- Contact blocks on the clip set which positions switch which circuits
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | T11MF20 |
| Device Type: | Selector Switch |
| Size: | 30 mm |
| Configuration: | Component |
| Illumination: | Illuminated |
| Function: | Momentary/Maintained |
| Number of Positions: | 3 |
| Style: | Standard Handle |
| Color: | Green |
| Bezel Color: | Chrome |
General Specifications:
| Degree of protection: | IP65 |
| NEMA type: | 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +60 °C |
| Contact blocks and LED modules: | Same as 22 mm heads |
Source: Baco Controls catalog 803, technical specifications.
