T11LD00 Baco 30mm 2 Position Momentary Chrome Bezel Key Switch
Sku#: T11LD00
Contact us for availability.
Details
More Information
Reviews

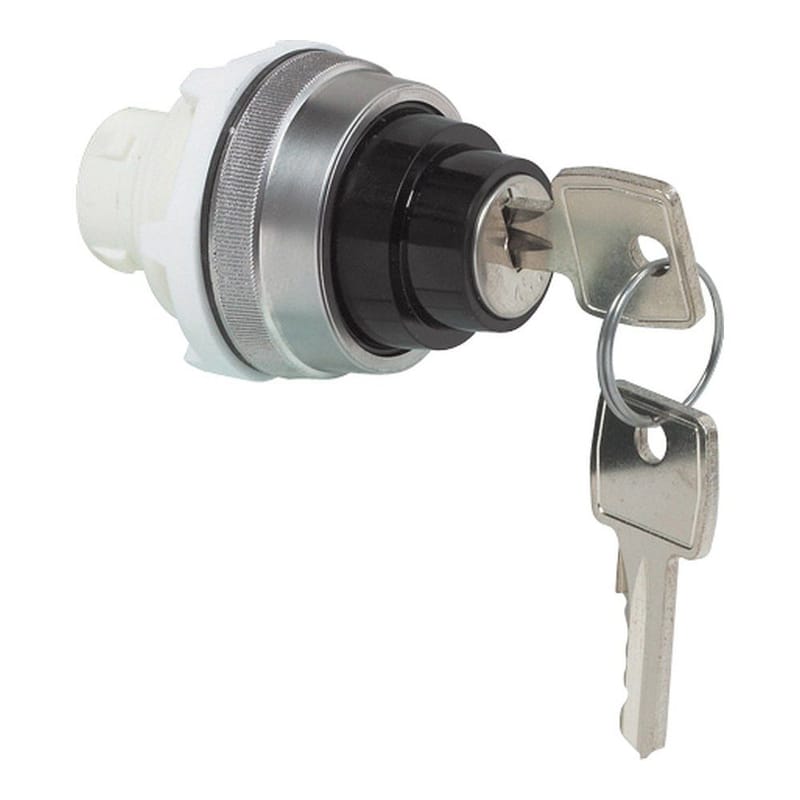

The Baco T11LD00 is a 30mm 2 Position Momentary Chrome Bezel Key Switch.
Operator head only. To build a complete device, add a mounting clip and contact blocks — see 30mm clips and 30mm contact blocks and LED modules.
- Modular head, clip and contact block design
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | T11LD00 |
| Device Type: | Key Switch |
| Size: | 30 mm |
| Configuration: | Component |
| Illumination: | Non-Illuminated |
| Function: | Momentary |
| Number of Positions: | 2 |
| Color: | Black |
| Bezel Color: | Chrome |
General Specifications:
| Degree of protection: | IP65 |
| NEMA type: | 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +70 °C |
| Contact blocks and LED modules: | Same as 22 mm heads |
Source: Baco Controls catalog 803, technical specifications.
