T11KB03-3E10 Baco 30mm Black 2 Position Momentary Chrome Bezel Selector Switch with 1 NO and 3 Position Clip
Sku#: T11KB03-3E10
Contact us for availability.
Details
More Information
Reviews
The Baco T11KB03-3E10 is a 30mm Black 2 Position Momentary Chrome Bezel Selector Switch with 1 NO and 3 Position Clip.

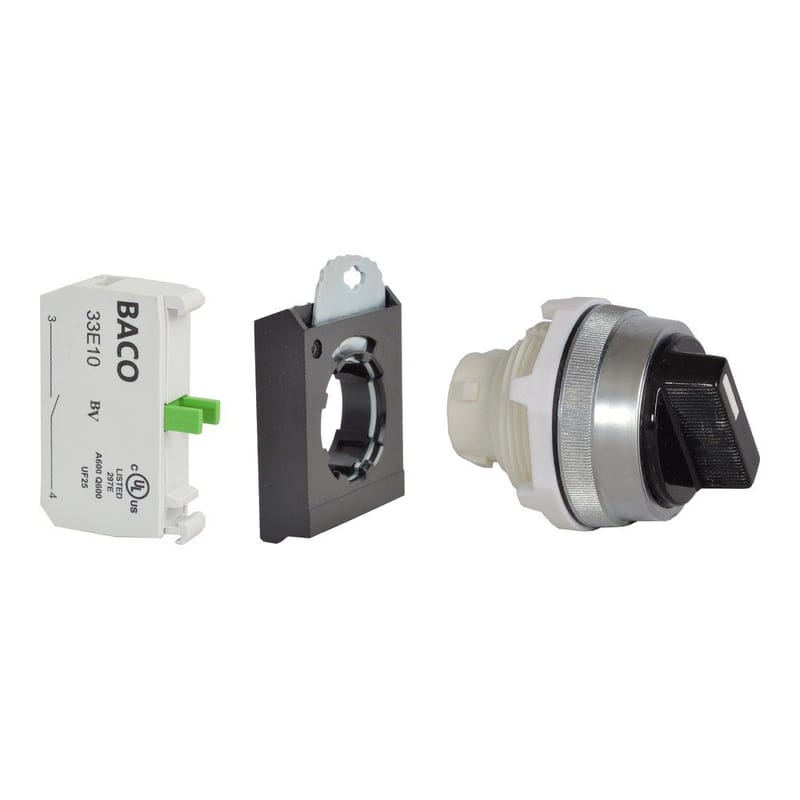

Complete device: supplied ready to install, made up of T11KB03, 333E, 33E10.
- Modular head, clip and contact block design
- Contact blocks on the clip set which positions switch which circuits
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | T11KB03-3E10 |
| Device Type: | Selector Switch |
| Size: | 30 mm |
| Configuration: | Complete Device |
| Function: | Momentary |
| Number of Positions: | 2 |
| Style: | Standard Handle |
| Color: | Black |
| Bezel Color: | Chrome |
| Contacts: | 1 Normally Open (NO) |
General Specifications:
| Degree of protection: | IP65 |
| NEMA type: | 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +70 °C |
| Contact blocks and LED modules: | Same as 22 mm heads |
Source: Baco Controls catalog 803, technical specifications.
