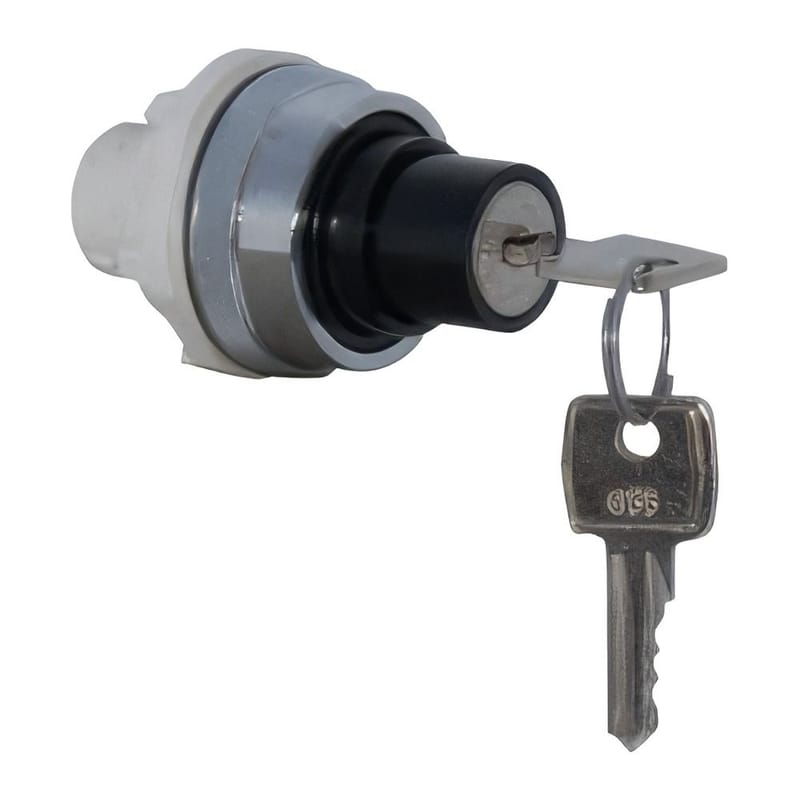

T11GF00 Baco 30mm Key Operated Pushbutton Chrome Bezel, Manual Locking, Top Position

The Baco T11GF00 is a 30mm Key Operated Pushbutton Chrome Bezel, Manual Locking, Top Position.

Operator head only. To build a complete device, add a mounting clip and contact blocks — see 30mm clips and 30mm contact blocks and LED modules.

• Modular head, clip and contact block design

Specifications:

Manufacturer:	Baco Controls
Part Number:	T11GF00
Device Type:	Key Switch
Size:	30 mm
Illumination:	Non-Illuminated
Configuration:	Component
Bezel Color:	Chrome
Locking:	Manual Locking, Top Position

General Specifications:

Degree of protection:	IP65
NEMA type:	4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Contact blocks and LED modules:	Same as 22 mm heads

Source: Baco Controls catalog 803, technical specifications.
