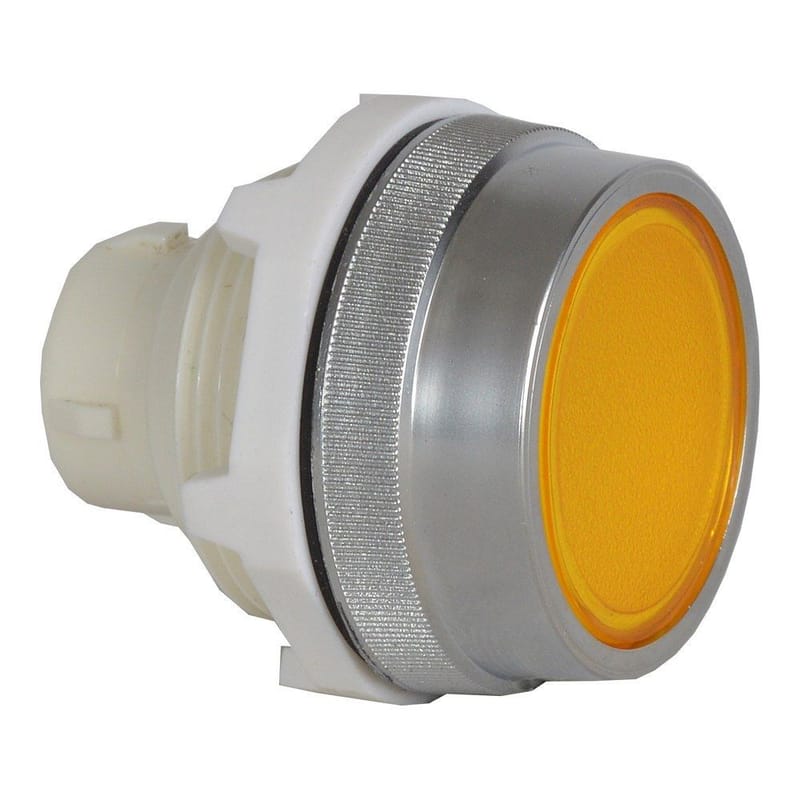

T11AJ40 Baco 30mm Yellow Flush Momentary Illuminated Chrome Bezel Pushbutton

The Baco T11AJ40 is a 30mm Yellow Flush Momentary Illuminated Chrome Bezel Pushbutton.

Operator head only. To build a complete device, add a mounting clip and contact blocks, plus an LED module to light it — see 30mm clips and 30mm contact blocks and LED modules.

• Modular head, clip and contact block design
• Installs from the front of the panel with one hand
• Contact blocks mount on a 1, 3 or 5 position clip

Specifications:

Manufacturer:	Baco Controls
Part Number:	T11AJ40
Device Type:	Pushbutton
Size:	30 mm
Configuration:	Component
Illumination:	Illuminated
Function:	Momentary
Style:	Flush
Color:	Yellow
Bezel Color:	Chrome

General Specifications:

Degree of protection:	IP65
NEMA type:	4, 4X, 12 and 13
Operating temperature:	-25 °C to +60 °C
Mechanical life:	3,000,000 operating cycles (spring return)
Contact blocks and LED modules:	Same as 22 mm heads

Source: Baco Controls catalog 803, technical specifications.
