T11AD02 Baco 30mm Green 40mm Mushroom Momentary Chrome Bezel Pushbutton
Sku#: T11AD02
Contact us for availability.
Details
More Information
Reviews

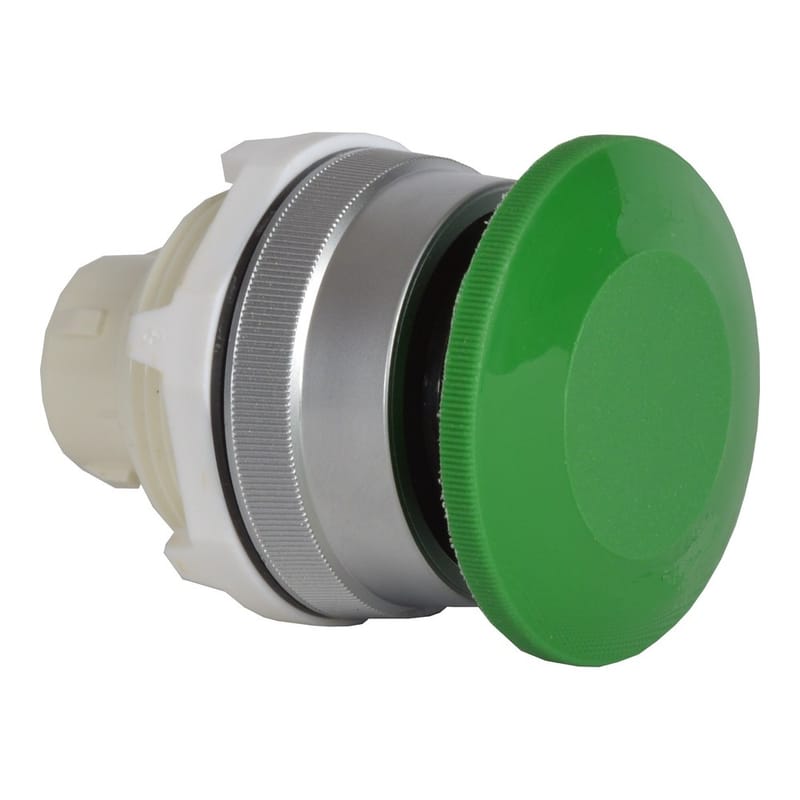

The Baco T11AD02 is a 30mm Green 40mm Mushroom Momentary Chrome Bezel Pushbutton.
Operator head only. To build a complete device, add a mounting clip and contact blocks — see 30mm clips and 30mm contact blocks and LED modules.
- Modular head, clip and contact block design
- Installs from the front of the panel with one hand
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | T11AD02 |
| Device Type: | Mushroom Pushbutton |
| Size: | 30 mm |
| Configuration: | Component |
| Illumination: | Non-Illuminated |
| Function: | Momentary |
| Style: | 40 mm Mushroom |
| Color: | Green |
| Bezel Color: | Chrome |
General Specifications:
| Degree of protection: | IP65 |
| NEMA type: | 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +70 °C |
| Mechanical life: | 3,000,000 operating cycles (spring return) |
| Contact blocks and LED modules: | Same as 22 mm heads |
Source: Baco Controls catalog 803, technical specifications.
