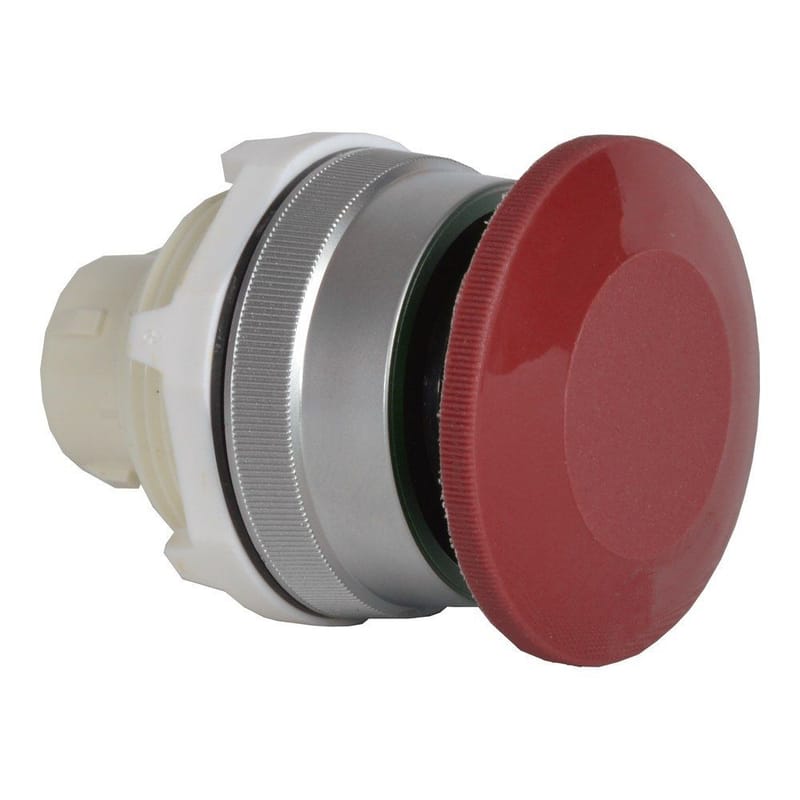

T11AD01S Baco 30mm Red 40mm Mushroom Momentary Chrome Bezel Pushbutton with Stop Stop Stop

The Baco T11AD01S is a 30mm Red 40mm Mushroom Momentary Chrome Bezel Pushbutton with Stop Stop Stop.

Operator head only. To build a complete device, add a mounting clip and contact blocks — see 30mm clips and 30mm contact blocks and LED modules.

• Modular head, clip and contact block design
• Installs from the front of the panel with one hand

Specifications:

Manufacturer:	Baco Controls
Part Number:	T11AD01S
Device Type:	Mushroom Pushbutton
Size:	30 mm
Configuration:	Component
Illumination:	Non-Illuminated
Function:	Momentary
Style:	40 mm Mushroom
Color:	Red
Bezel Color:	Chrome

General Specifications:

Degree of protection:	IP65
NEMA type:	4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Mechanical life:	3,000,000 operating cycles (spring return)
Contact blocks and LED modules:	Same as 22 mm heads

Source: Baco Controls catalog 803, technical specifications.
