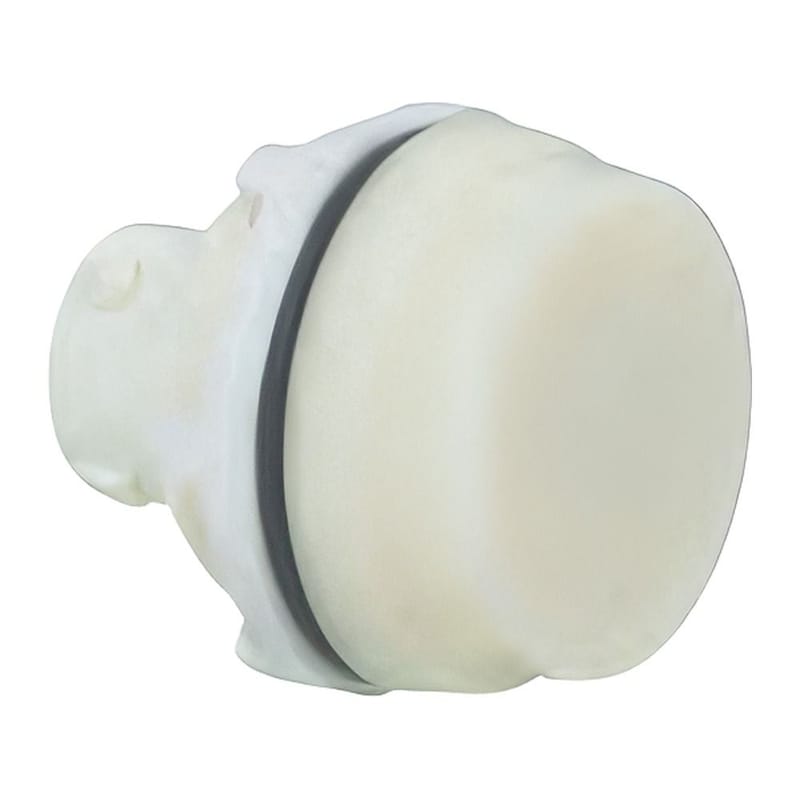

T10SB50 Baco 30mm White Head Smooth Lens Pilot Light

The Baco T10SB50 is a 30mm White Head Smooth Lens Pilot Light.

Operator head only. To build a complete device, add a mounting clip and an LED module — see 30mm clips and 30mm contact blocks and LED modules.

• Bright, long-life LED indication
• Mounts in a standard panel hole like any operator

Specifications:

Manufacturer:	Baco Controls
Part Number:	T10SB50
Device Type:	Pilot Light
Size:	30 mm
Illumination:	Illuminated
Style:	Smooth Lens
Color:	White
Configuration:	Component

General Specifications:

Degree of protection:	IP65
NEMA type:	4, 4X, 12 and 13
Operating temperature:	-25 °C to +60 °C
Contact blocks and LED modules:	Same as 22 mm heads

Source: Baco Controls catalog 803, technical specifications.
