SC3400 Air-Mite Pneumatic Two Hand No-Tie-Down Safety Control

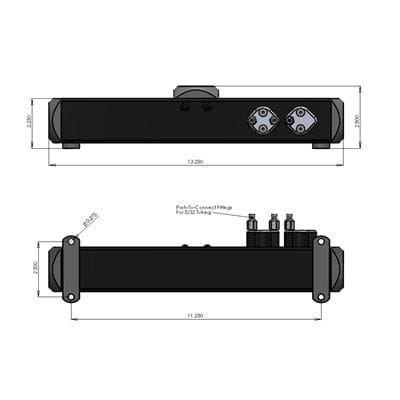

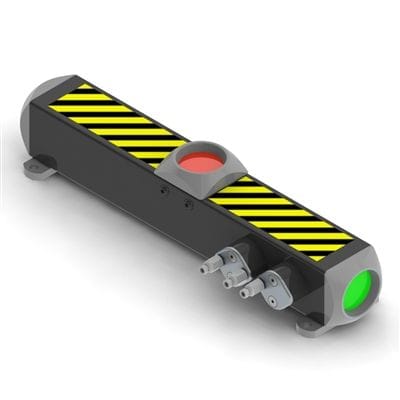

The Air-Mite SC3400 is a pneumatic two-hand, no-tie-down safety control system designed for secure operation. It integrates buttons, logic, and a manifold in a single unit. Key features include two output ports that can connect to either end of a double pilot valve or a single pilot valve and logic module. When both green buttons are pressed, Output 1 sends a signal, while Output 2 activates when the red button ends the cycle. It operates at 60-100 psi, within a 0.3-second window, requiring 40-micron filtration and 5/32 push-to-connect fittings. Lubrication is prohibited to maintain the warranty.
