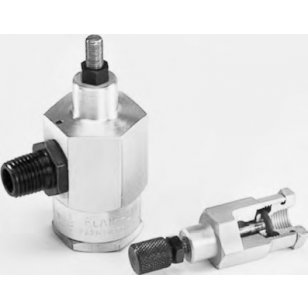

RFC-1/8-K Flairline Right Angle Flow Control with Knob

Home >
RFC-1/8-K Flairline Right Angle Flow Control with Knob

More Views

RFC-1/8-K Flairline Right Angle Flow Control with Knob

Availability: 0

$21.40

Buy 25 for $20.33 each and save 5%
Buy 50 for $19.90 each and save 7.01%
Buy 100 for $18.19 each and save 15%
Buy 250 for $16.05 each and save 25%
Buy 500 for $15.62 each and save 27.01%

Quick Overview

Flairline right angle flow controls incorporate O-Check as the bypass valve. RFC permits full free flow in one direction, accurately metered flow in opposite direction. Standard metering needle design includes compound needle taper of 5• and 15• and fine adjustment stem threads (RFC 1/4 for example is 1/4”- 36). Right angle design eliminates the need for pipe ell normally used to make 90• turn at cylinder port. Standard NPTF sizes 1/8”, 1/4”, 3/8”, 1/2” and 3/4”. Adjustment knobs and panel mounting available (NPTF sizes 1/8”, 1/4” and 3/8” only). Optional swivel connector allows “direct” cylinder mounting and 360• rotation for ease of installation and space saving (NPTF sizes 1/8”, 1/4”, 3/8”, and 1/2” only).

Qty:

Email to a Friend

Be the first to review this product

Details

Additional Information

Part Number	RFC-1/8-K
Brand	Monnier Companies, Inc.
Pack Size	1.0000
UOM	EA
Lead time (Historical if not in stock)	0 Lead Days
Product Type	Flow Control
Operating Fluid	Air
Fluid Power Type	Pneumatic
Material	Aluminum
Thread Size	1/8" NPT
