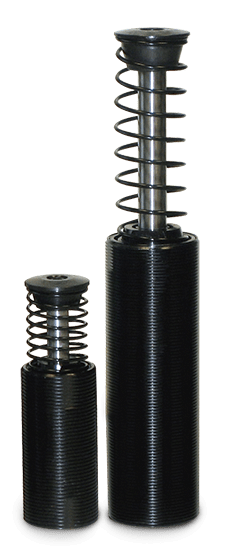

PMXT 2150 MF-1 Enidine Non-Adjustable Hydraulic Shock Absorber, M64 x 2.0 Thread, 150 mm Stroke
Sku#: PMXT 2150 MF-1
Contact us for availability.
Details
More Information
Reviews
The Enidine PMXT 2150 MF-1 is a non-adjustable hydraulic shock absorber with an M64 x 2.0 mounting thread, 6.00 in (150 mm) stroke and damping constant -1.
Enidine PMXT Mid-Bore Series non-adjustable hydraulic shock absorbers are tamperproof and designed to absorb maximum energy within a compact envelope. The PM Series uses a self-compensating design for energy absorption in low velocity and high drive force applications, with corrosion-resistant nickel-plated components and positive stop capabilities.
Specifications:
| Manufacturer: | Enidine |
| Model: | PMXT 2150 MF-1 |
| Enidine part number: | MF222051 |
| Series: | PMXT |
| Type: | Non-adjustable hydraulic shock absorber |
| Mounting thread: | M64 x 2.0 |
| Damping constant: | -1 |
| Stroke: | 6.00 in (150.0 mm) |
| Max. energy per cycle: | 50,000 in-lbs/cycle (5 650.0 Nm/cycle) |
| Max. energy per hour: | 3,730,000 in-lbs/hour (421 000 Nm/hour) |
| Max. reaction force: | 13,750 lbs (60 500 N) |
| Nominal coil spring force, extended: | 20.0 lbs (87.0 N) |
| Nominal coil spring force, compressed: | 64.0 lbs (285.0 N) |
| Max. propelling force: | 4,000 lbs (17 800 N) |
| Weight: | 9.3 lbs (4.2 kg) |
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.65).
