PMXT 2100 IF-2 Enidine Non-Adjustable Hydraulic Shock Absorber, 2 1/2-12 Thread, 4.00 in Stroke
Sku#: PMXT 2100 IF-2
Contact us for availability.
Details
More Information
Reviews

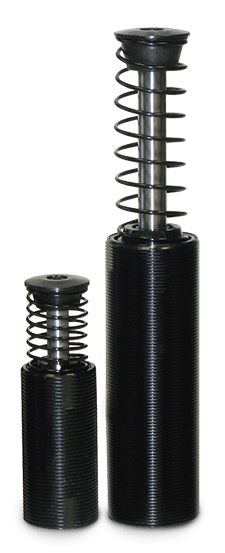

The Enidine PMXT 2100 IF-2 is a non-adjustable hydraulic shock absorber with a 2 1/2-12 mounting thread, 4.00 in (100 mm) stroke and damping constant -2.
Enidine PMXT Mid-Bore Series non-adjustable hydraulic shock absorbers are tamperproof and designed to absorb maximum energy within a compact envelope. The PM Series uses a self-compensating design for energy absorption in low velocity and high drive force applications, with corrosion-resistant nickel-plated components and positive stop capabilities.
Specifications:
| Manufacturer: | Enidine |
| Model: | PMXT 2100 IF-2 |
| Enidine part number: | FP222042 |
| Series: | PMXT |
| Type: | Non-adjustable hydraulic shock absorber |
| Mounting thread: | 2 1/2-12 |
| Damping constant: | -2 |
| Stroke: | 4.00 in (100.0 mm) |
| Max. energy per cycle: | 33,000 in-lbs/cycle (3 729.0 Nm/cycle) |
| Max. energy per hour: | 3,200,000 in-lbs/hour (362 000 Nm/hour) |
| Max. reaction force: | 13,750 lbs (60 500 N) |
| Nominal coil spring force, extended: | 16.0 lbs (69.0 N) |
| Nominal coil spring force, compressed: | 36.0 lbs (160.0 N) |
| Max. propelling force: | 4,000 lbs (17 800 N) |
| Weight: | 7.3 lbs (3.3 kg) |
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.65).
