PMXT 1575 IF-3 Enidine Non-Adjustable Hydraulic Shock Absorber, 1 3/4-12 Thread, 3.00 in Stroke
Sku#: PMXT 1575 IF-3
Contact us for availability.
Details
More Information
Reviews

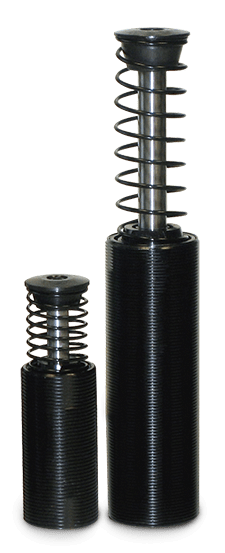

The Enidine PMXT 1575 IF-3 is a non-adjustable hydraulic shock absorber with a 1 3/4-12 mounting thread, 3.00 in (75.0 mm) stroke and damping constant -3.
Enidine PMXT Mid-Bore Series non-adjustable hydraulic shock absorbers are tamperproof and designed to absorb maximum energy within a compact envelope. The PM Series uses a self-compensating design for energy absorption in low velocity and high drive force applications, with corrosion-resistant nickel-plated components and positive stop capabilities.
Specifications:
| Manufacturer: | Enidine |
| Model: | PMXT 1575 IF-3 |
| Enidine part number: | FP222023 |
| Series: | PMXT |
| Type: | Non-adjustable hydraulic shock absorber |
| Mounting thread: | 1 3/4-12 |
| Damping constant: | -3 |
| Stroke: | 3.00 in (75.0 mm) |
| Max. energy per cycle: | 10,000 in-lbs/cycle (1 130.0 Nm/cycle) |
| Max. energy per hour: | 1,775,000 in-lbs/hour (201 000 Nm/hour) |
| Max. reaction force: | 6,500 lbs (29 000 N) |
| Nominal coil spring force, extended: | 7.0 lbs (31.0 N) |
| Nominal coil spring force, compressed: | 18.0 lbs (78.0 N) |
| Max. propelling force: | 1,500 lbs (6 700 N) |
| Weight: | 2.7 lbs (1.3 kg) |
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.65).
