PMXT 1550 MF-3 Enidine Non-Adjustable Hydraulic Shock Absorber, M45 x 1.5 Thread, 50.0 mm Stroke
Sku#: PMXT 1550 MF-3
Contact us for availability.
Details
More Information
Reviews

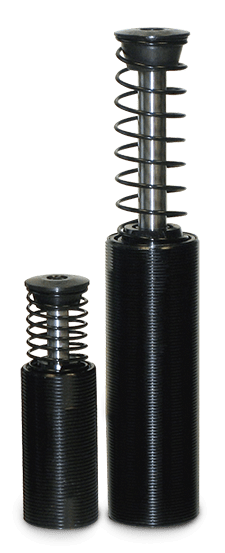

The Enidine PMXT 1550 MF-3 is a non-adjustable hydraulic shock absorber with an M45 x 1.5 mounting thread, 2.00 in (50.0 mm) stroke and damping constant -3.
Enidine PMXT Mid-Bore Series non-adjustable hydraulic shock absorbers are tamperproof and designed to absorb maximum energy within a compact envelope. The PM Series uses a self-compensating design for energy absorption in low velocity and high drive force applications, with corrosion-resistant nickel-plated components and positive stop capabilities.
Specifications:
| Manufacturer: | Enidine |
| Model: | PMXT 1550 MF-3 |
| Enidine part number: | MF222013 |
| Series: | PMXT |
| Type: | Non-adjustable hydraulic shock absorber |
| Mounting thread: | M45 x 1.5 |
| Damping constant: | -3 |
| Stroke: | 2.00 in (50.0 mm) |
| Max. energy per cycle: | 6,500 in-lbs/cycle (735.0 Nm/cycle) |
| Max. energy per hour: | 1,475,000 in-lbs/hour (167 000 Nm/hour) |
| Max. reaction force: | 6,500 lbs (29 000 N) |
| Nominal coil spring force, extended: | 11.0 lbs (29.0 N) |
| Nominal coil spring force, compressed: | 18.0 lbs (78.0 N) |
| Max. propelling force: | 1,500 lbs (6 700 N) |
| Weight: | 2.4 lbs (1.1 kg) |
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.65).
