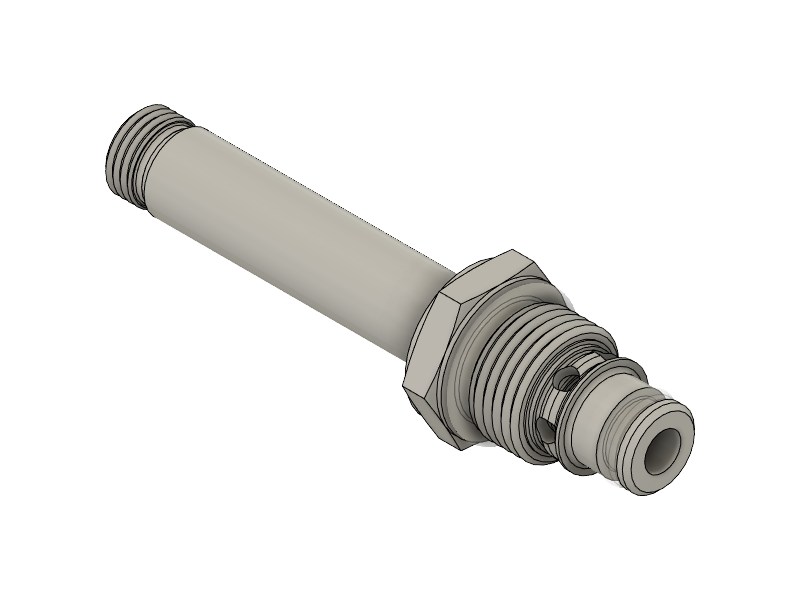

PB-S2C-00 Delta Power Company 2 Way Normally Open Pilot Operated Poppet Valve

The Delta Power Company PB-S2C is a 8 size, 3/4-16 thread, "Power" series, solenoid operated 2-way, normally open pilot operated poppet valve with free reverse flow energized.

OPERATION

When de-energized the PB-S2C allows flow to pass from (1) to (2), but restricts flow from (2) to (1). When energized the valve blocks flow from (1) to (2) but allows free reverse flow from (2) to (1).

OPERATION OF MANUAL OVERRIDE OPTION: to override, turn the manual override screw clockwise.To release turn the manual override screw counterclockwise.

FEATURES

• Hardened parts for long life
• Efficient wet-armature construction
• Cartidges are voltage interchangeable
• Manual overide option
• Industry common cavity
• Unitized, molded coild design
• Continuous duly rated solenoid
• Optional coil voltages and terminations
• Optional "I" Coil:  Weatherproof, Thermal Shock, Imersion Safe

Delta Power Company PB-S2C Specification Manual (Click Here)
