OEMXT 1.5M X 1 Enidine Adjustable Hydraulic Shock Absorber, M42 x 1.5 Thread, 25.0 mm Stroke

The Enidine OEMXT 1.5M X 1 is an adjustable hydraulic shock absorber with an M42 x 1.5 mounting thread and 25.0 mm stroke.

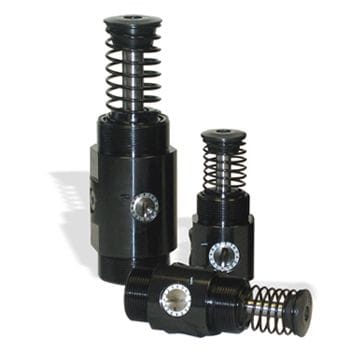

The Enidine OEMXT Series is an adjustable mid-bore hydraulic shock absorber with a low profile adjustment knob, offered in imperial or metric thread configurations with stroke lengths of 1 to 6 inches. Low Range (LROEMXT) models control velocities as low as 3 in./sec. and propelling forces as high as 4,000 lbs. OEMXT shock absorbers are fully field repairable.

Specifications:

Manufacturer:	Enidine
Model:	OEMXT 1.5M X 1
Enidine part number:	MF22190
Series:	OEMXT
Type:	Adjustable hydraulic shock absorber
Mounting thread:	M42 x 1.5
Stroke:	25.0 mm
Optimal velocity range:	0.3-3.5 m/s
Max. energy per cycle:	425 Nm/cycle
Max. energy per hour:	126 000 Nm/hour
Max. reaction force:	20 000 N
Nominal coil spring force, extended:	48 N
Nominal coil spring force, compressed:	68 N
Max. propelling force:	2 890 N
Weight:	1.2 kg

Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.27).
