OEMXT 1 1/8 X 4 CMS Enidine Adjustable Hydraulic Shock Absorber, 2 1/2-12 Thread, 4.00 in Stroke, Clevis Mounts
Sku#: OEMXT 1 1/8 X 4 CMS
Contact us for availability.
Details
More Information
Reviews
The Enidine OEMXT 1 1/8 X 4 CMS is an adjustable hydraulic shock absorber with a 2 1/2-12 mounting thread and 4.00 in stroke.

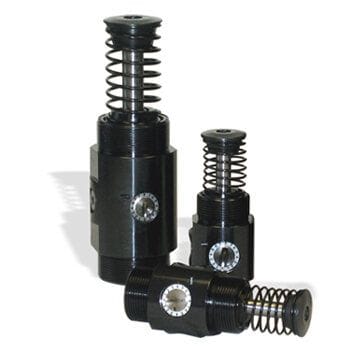

The Enidine OEMXT Series is an adjustable mid-bore hydraulic shock absorber with a low profile adjustment knob, offered in imperial or metric thread configurations with stroke lengths of 1 to 6 inches. Low Range (LROEMXT) models control velocities as low as 3 in./sec. and propelling forces as high as 4,000 lbs. OEMXT shock absorbers are fully field repairable.
Specifications:
| Manufacturer: | Enidine |
| Model: | OEMXT 1 1/8 X 4 CMS |
| Enidine part number: | CU22184 |
| Series: | OEMXT |
| Type: | Adjustable hydraulic shock absorber |
| Mounting thread: | 2 1/2-12 |
| Mounting: | Clevis mounts |
| Stroke: | 4 in |
| Optimal velocity range: | 12-140 in/s |
| Max. energy per cycle: | 40,000 in-lbs/cycle |
| Max. energy per hour: | 3,200,000 in-lbs/hour |
| Max. reaction force: | 11,500 lbs |
| Nominal coil spring force, extended: | 16 lbs |
| Nominal coil spring force, compressed: | 36 lbs |
| Max. propelling force: | 1,500 lbs |
| Weight: | 10.8 lbs |
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.29).
