OEM 4.0M X 10 Enidine Adjustable Hydraulic Shock Absorber, M115 x 2.0 Thread, 250 mm Stroke
Sku#: OEM 4.0M X 10
Contact us for availability.
Details
More Information
Reviews
The Enidine OEM 4.0M X 10 is an adjustable hydraulic shock absorber with an M115 x 2.0 mounting thread and 10 in (250 mm) stroke.

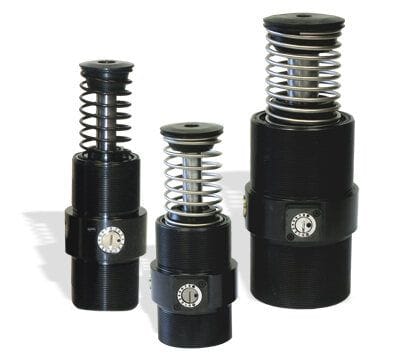

Enidine OEM Large Bore Series adjustable hydraulic shock absorbers: turning the adjustment knob changes the damping force to suit varying or undefined input conditions. OEM Large Series shock absorbers are fully field repairable.
Specifications:
| Manufacturer: | Enidine |
| Model: | OEM 4.0M X 10 |
| Enidine part number: | MF3724 |
| Series: | OEM Large Bore |
| Type: | Adjustable hydraulic shock absorber |
| Mounting thread: | M115 x 2.0 |
| Stroke: | 10.0 in (250 mm) |
| Optimal velocity range: | 12-170 in/s (0.3-4.3 m/s) |
| Max. energy per cycle: | 170,000 in-lbs/cycle (19 200 Nm/cycle) |
| Max. energy per hour: | 24,000,000 in-lbs/hour (2 712 000 Nm/hour) |
| Max. reaction force: | 25,000 lbs (111 000 N) |
| Nominal coil spring force, extended: | 30 lbs (135 N) |
| Nominal coil spring force, compressed: | 80 lbs (355 N) |
| Max. propelling force: | 4,800 lbs (21 000 N) |
| Weight: | 73.0 lbs (33.0 kg) |
- All shock absorbers will function satisfactorily at 5% of their maximum rated energy per cycle. If less than 5%, a smaller model should be specified.
Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.31).
