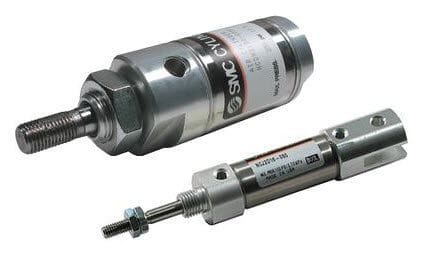

NCME106-0100S SMC Stainless Steel Cylinder

Sku#: NCME106-0100S

Contact us for availability.
SMC standard single acting single rod version of our NCM stainless steel cylinders. The SMC NCM cylinder is available in 3 mounting styles (front nose, double end, & rear pivot). Single acting is available in either spring extend or spring return.

SMC standard single acting single rod version of our NCM stainless steel cylinders. The SMC NCM cylinder is available in 3 mounting styles (front nose, double end, & rear pivot). Single acting is available in either spring extend or spring return. Bore sizes range from 3/4" to 1 1/2" and standard strokes from 1/2" to 6". Available with auto-switch capable as standard.

  • Single acting single rod, spring return or spring extend
  • Bore sizes (inch): 3/4, 7/8, 1 1/16, , 1 1/4, 1 1/2
  • Maximum stroke:  up to 6" as standard
  • Available with auto switches
