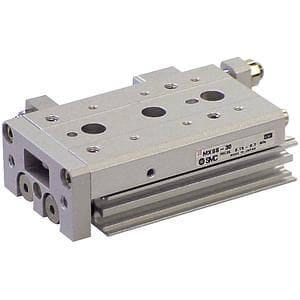

MXS20-30 SMC Precision Air Slide Table, 20mm Bore, 30mm Stroke
Sku#: MXS20-30
The SMC MXS20-30 Precision Air Slide Table combines a pneumatic cylinder, work table, and precision guide system into a compact actuator designed for controlled linear motion in industrial automation equipment. Part of SMC's MXS Series, the slide uses cross-roller bearings and integrated guide rails to support the applied load independently from the movement of the piston rods and seals, providing a rigid platform for precision assembly and positioning applications.
The MXS20-30 features a 20 mm bore and 30 mm stroke with SMC's dual-piston-rod design. The dual rods provide increased actuator thrust while helping maintain stable table movement. This standard configuration uses Rc 1/8 pneumatic ports, operates as a double-acting actuator, and incorporates rubber bumpers at the stroke ends.
Designed for industrial compressed-air systems, the MXS20-30 has an operating pressure range of 0.15 to 0.7 MPa, proof pressure of 1.05 MPa, and an average operating speed range of 50 to 500 mm/s. The standard MXS design is non-lubricated and operates within an ambient and fluid temperature range of -10°C to 60°C.
For applications requiring accurate mounting and repeatable workpiece positioning, the MXS Series incorporates positioning holes in both the work table and actuator body. The cross-roller guide construction also allows the unit to support loads and moments while maintaining a compact footprint. SMC lists applications such as precision assembly, pallet positioning, and pick-and-place motion as typical uses for the MXS platform.
Key Product Features:
- SMC part number MXS20-30
- MXS Series precision air slide table
- 20 mm bore
- 30 mm stroke
- Rc 1/8 pneumatic ports
- Double-acting operation
- Cross-roller bearing guide
- Integrated work table, guide, and pneumatic cylinder
- Dual piston rod design
- Standard rubber bumper cushioning
- Operating pressure: 0.15 to 0.7 MPa
- Proof pressure: 1.05 MPa
- Operating speed range: 50 to 500 mm/s
- Ambient and fluid temperature: -10°C to 60°C
- Non-lubricated operation
- Auto-switch capable
- RoHS compliant
- Suitable for precision assembly, positioning, and pick-and-place applications
For additional SMC pneumatic actuators, guided cylinders, slide tables, valves, fittings, air preparation products, vacuum components, and automation solutions, visit the SMC manufacturer page at Scott Equipment Company.
