Details
Murrelektronik's Insulation Displacement Connectors (IDC) are a fast and easy way to terminate cables with either M8 or M12 connections. These robust connectors are rated to IP67 and can stand up to tough industrial environments.
WIth minimal tools needed, these connectors are the fastest way to terminate a cable to a connector. IDC products from Murrelektronik take less than 50% of the time it takes to install a traditional screw terminal connector. WIth razor style blades in the base to make the actual connection to the wire, the IDC connector makes connections easy: simply tighten the strain relief, by hand, with minimal force. No more force is needed than it takes to re-tighten a drink cap.

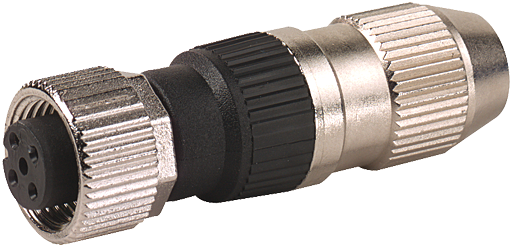

Murr Female M12, 4-pole, IDC
Female straight
M12, 4-pole
Insulation displacement technology IDC
Connection cross section: 0.25...0.5 mm²
Art.-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
The resistance to aggressive media should be individually tested for your application. Further details on request. -
Additional Information
Part Number 7000-12601-0000000 Brand Murrelektronik, Inc. Pack Size 1.0000 UOM EA Lead time (Historical if not in stock) 0 Lead Days Cable Connection M12 Cable Gender Female Poles 4 -
