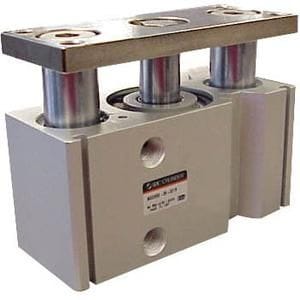

MGQL20TN-100 SMC Compact Guided Cylinder

The SMC MGQL20TN-100 Compact Guided Cylinder is a high-performance linear actuator engineered for precise, stable movement in space-limited applications. Designed with a compact body and integrated guide shafts, the MGQL series isolates the load-bearing function from the actuator rod and seals—enhancing durability and maintaining accurate alignment under load.

This model features a 20 mm bore and 100 mm stroke, along with high-precision ball bushing bearings that ensure smooth, low-friction travel with excellent non-rotating accuracy. Ideal for applications requiring tight motion control, the MGQL delivers consistent, repeatable performance across a wide range of industrial environments.

Key Features:

• Bore Size: 20 mm

• Stroke Length: 100 mm

• Compact Body with Guide Shafts: Provides enhanced rigidity and load support

• Ball Bushing Bearings: Enable smooth operation and stable travel resistance

• High Non-Rotating Accuracy: ±0.1° for the 20 mm bore model

• Rubber Bumpers Standard: Reduces impact and extends cylinder life

• Auto Switch Capable: Supports sensor integration for position detection

• High-Temperature Option Available (XB6): Rated up to 150°C (302°F)

Engineered for compact automation systems, pick-and-place units, clamping fixtures, and precise part positioning, the MGQL20TN-100 combines space efficiency with rugged construction—making it a trusted solution for demanding industrial motion control.
