Details

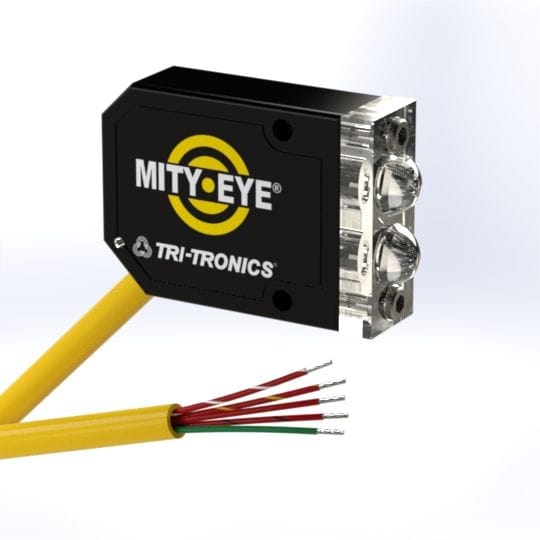

TRI-TRONICS MITY•EYE® Miniature Photoelectric Sensors provide the same features and benefits of large, expensive sensors... at an affordable price. Interchangeable solid "optical grade" high impact lenses available for polarized, retroreflective, proximity, fiber-optic, or convergent sensing applications.
Designed for trouble-free operation, many features have been incorporated into the MITY•EYE® to prevent mechanical or electrical damage and to provide trouble-free operation. The sensitivity pot is protected with a clutch to prevent damage from over-travel. The entire sensor is epoxy-encapsulated to ensure mechanical strength. The case itself is rugged and watertight.
AC models prevent electrical mishaps with an optically isolated AC solid state switch is protected by an MOV (Metal Oxide Varistor). In addition, the AC switch turns on synchronously at near zero volts which helps to prevent electrical line noise generated by hard relay contacts or inductive loads.
Technical Features
Model Specific Adjustment Type: Potentiometer LED Light Source: High Intensity Red = 650nm. Recommended for long-range proximity sensing and for use with plastic fiberoptic light guides Connection Type: Connector, 5-pin M12 Pigtail Sensing Range: 1.5in Housting Type: Miniature Rectangular Opitical Block: Type V6, Convergent 1.5" "V" Axis. Narrow beam optics useful for sensing small parts. Also useful for proximity sensing to minimize response to reflected light from background objects. Useable range of 1.5" Family Specific Supply Volatge:
- 10 to 30 VDC @ 35mA
- Reverse Polarity Protected

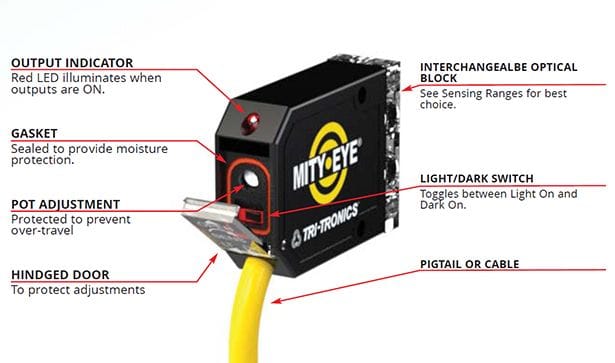

Adjustments/Indicators:
- 4-turn clutched sensitivity adjustment
- 2-position light "on"/dark "on" selection switch
- Red LED indicator energized when light beam is established
DC Models Output Devices:
- Provide both NPN and PNP open collector output transistors capable of sinking or sourcing up to 150mA continuous
- Short circuit protected
- Zener Diode protected to 36 volts
- Protected against false chattering/pulsing during power up
Ambient Temperature:
- -20 degrees C to 70 degrees C (-20 degrees F to 158 degrees F)
Response Time:
- 500 microseconds (light or dark)
Rugged Construction:
- Chemical resistant case, "O" ring sealed to provide moisture protection
- Epoxy encapsulated for mechanical stability
- NEMA 4X, 6P and IP67
Light Immunity:
- Pulse modulated to provide extremely high immunity to ambient light
-
Additional Information
Part Number MDHRCV6 Brand Tri-Tronics Co Pack Size 1.0000 UOM EA Lead time (Historical if not in stock) 13.000000000 Lead Days -
