Scott Equipment Company supports Hydronit Americas compact hydraulic power units, electro-pumps, central manifolds, pumps, valves and related components for manufacturers, OEMs and maintenance teams throughout North America.
Hydronit Americas Compact Hydraulic Power Units & Pumps

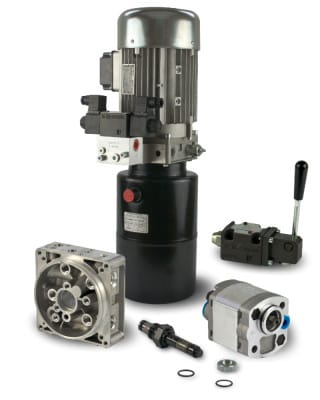

Hydronit Americas specializes in modular compact hydraulic power packs for mobile and industrial equipment. Its current North American offering is built around the PPM Micro, PPC Compact and EPB Bull series, supported by pressure-balanced gear pumps, integrated hydraulic circuits, AC and DC motor options, reservoirs, valves and modular components that can be configured into application-specific hydraulic power units.
Modular Hydraulic Power Units Assembled & Supported in Charlotte
Hydronit Americas is Hydronit’s U.S. associated company and operates from Charlotte, North Carolina. Its U.S. operation provides assembly, testing, warehousing, sales and technical support, while Hydronit’s Italian headquarters handles design, research and development and production. This structure gives North American customers local support for a highly modular compact-hydraulic platform.
Modular Power-Unit Architecture
Hydronit builds its PPM and PPC systems around compact aluminum central manifolds that accept preassembled screw-in hydraulic functions, pumps, motors, tanks and external modular blocks in many circuit combinations.
High Power Density
Pressure-balanced gear pumps, integrated manifolds and compact electric-motor packages are designed to provide useful hydraulic pressure and flow from a relatively small footprint while limiting unnecessary pressure loss and heat generation.
Mobile & Industrial Applications
Hydronit power packs are used across lifting equipment, mobile machinery, material handling, automotive, agricultural, marine and industrial applications where compact hydraulic power and integrated control are required.
Explore Hydronit Compact Hydraulic Power Solutions
Use these product areas as a starting point for compact hydraulic power, lifting, clamping, mobile equipment, machine actuation and other applications requiring an integrated pump, motor, reservoir and valve circuit.
PPM Micro Hydraulic Power Packs
The PPM Micro series is Hydronit’s smallest modular power-unit platform for applications with severe space constraints. Current specifications include power up to 2.2 kW, flow up to 1.58 gpm and pressure up to 3,675 psi, with single-acting, double-acting and reversible circuit possibilities from the same modular architecture.
Explore PPM Micro power packs →PPC Compact Hydraulic Power Packs
The PPC Compact series is built around Hydronit’s Universal and Smart central manifolds and supports AC or DC motors, fixed- or variable-speed operation, single or double gear pumps, plastic or metal reservoirs and integrated hydraulic valves. Current specifications list AC power up to 7.5 kW, DC power up to 4 kW, flow up to 6.6 gpm and pressure up to 4,400 psi or more depending on configuration.
Explore PPC Compact power packs →EPB Bull DC Electro-Pumps
The EPB Bull series combines DC motors and gear pumps for battery-powered mobile, marine and transport equipment. Current options include 12, 24 and 48 VDC motors up to 4 kW, flows up to 24 l/min and pressure up to 4,400 psi, with an optional integral pressure-relief valve and mounting foot.
Explore EPB Bull electro-pumps →Central Manifolds & Integrated Hydraulic Circuits
Hydronit’s central manifolds integrate pump flow paths with pressure, flow, check, directional and proportional valve functions. PPC configurations can integrate up to eleven devices directly in the central manifold, while the smaller PPM platform can integrate up to eight, helping reduce external plumbing and overall package size.
Explore central-manifold resources →Pressure-Balanced Gear Pumps & Power Sources
Hydronit uses pressure-balanced gear pumps designed to maintain volumetric efficiency as outlet pressure increases. Power-source options include 12, 24 and 48 VDC motors up to 4 kW, AC motors up to 7.5 kW, and selected configurations for standard 56C or 184TC motors as well as gas-engine and pulley-drive applications.
Explore Hydronit power-unit options →Reservoirs, Valves & Modular Components
Hydronit’s modular system includes plastic and metal reservoirs, relief valves, check valves, flow controls, directional valves, proportional controls, hand-pump options and stackable manifold components. Hydronit Americas can supply complete tested power packs or selected loose components for service and local assembly.
Explore technical component resources →Help Configure a Compact Hydronit Power Unit
Our Sales and Technical Teams can help review hydraulic pressure, flow, actuator size, cylinder function, reservoir volume, motor voltage and power, duty cycle, valve logic, mounting space and environmental requirements. We can also coordinate Hydronit power units with cylinders, hoses, fittings, sensors, controls and supporting hydraulic components.
Power-Unit Sizing
Review required pressure, flow, cylinder speed, displacement, motor power, reservoir size and duty cycle to establish the basic hydraulic power requirement.
Circuit & Manifold Configuration
Define single-acting, double-acting, reversible, load-holding, pressure-control, flow-control and proportional functions that can be integrated into the Hydronit manifold architecture.
AC, DC & Mobile Power Selection
Match available voltage, duty cycle, starting load, motor size and application environment to AC, DC or other supported Hydronit power-source arrangements.
WBIYII Hydraulic Assemblies
Coordinate Hydronit power units with cylinders, hoses, fittings, sensors, brackets and related components into repeatable WBIYII hydraulic assemblies or installation-ready kits.
Selection note: Final hydraulic power-unit selection should be verified against peak and continuous pressure, required flow, motor starting conditions, fluid viscosity, reservoir capacity, filtration, heat generation, duty cycle, ambient temperature, mounting orientation and applicable machine requirements. Hydronit specifically recommends calculation and field verification when single-phase AC motors must start under hydraulic load.
Catalogs, Technical Support & Hydraulic Resources
Use these resources to compare PPM, PPC and EPB products, review technical component information and explore complementary hydraulic manufacturers.
Explore Supporting Automation & Fluid-Power Technologies
Hydronit compact power units commonly integrate with hydraulic cylinders, sensors, PLCs, motors, machine-safety systems and other mobile or industrial automation components.
Need a Compact Hydraulic Power Unit?
Share the required pressure, flow, actuator function, duty cycle, voltage, reservoir needs, available space and hydraulic circuit requirements. Scott Equipment Company can help identify Hydronit options and coordinate the supporting hydraulic and automation components.
