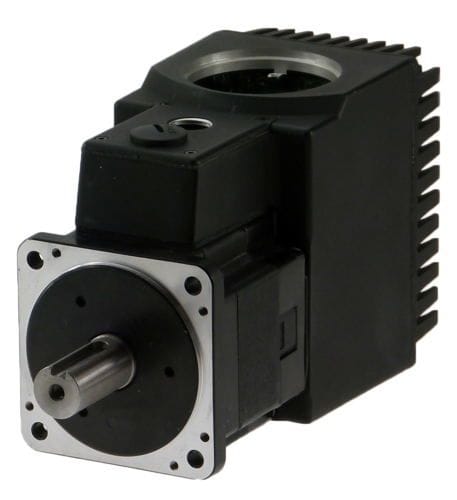

MAC800-D6 JVL IP65 Rated Integrated Servo Motor with Brake

Sku#: MAC800-D6

The JVL MAC800-D6 Integrated Servo Motor is a 750W (1.00hp) motor. The MAC800-D6 has a peak torque of 6.8Nm and weighs 3.5kg (7.72lb). The speed range for the MAC800-D6 is 0-3000RPM with full torque and a maximum of 3500RPM.

Details

Resources

More Information

Reviews

MAC800 - The complete solution for larger power ratings.

All with built-in mains power supply.
Choose between model with or without brake.
Also in IP66 version.
Choose Expansion module from the extensive selection for any application.

Motor size is:

MAC800-D2 746W
MAC800-D5 (with built-in brake) 746W

Expansion module you can choose between:

Basic Modules
Programmable Modules
Field Bus Modules
High Speed Multi-Axis Modules
Wireless Modules

Rated Output @ 3000RPM: 750W

Rated Torque: 2.38Nm / 337.042 oz-in

Peak Torque: 6.8Nm / 962.96 oz-in

Inertia: 0.91 kgcm2 / 0.01289 oz-in-s2

Length: 174mm (6.85in)

Full Torque Speed Range: 0-3000

RPM Max Speed: 3500 RPM IP65
