JVL Integrated Servo Motor MAC400-D5-CAGM

Home >

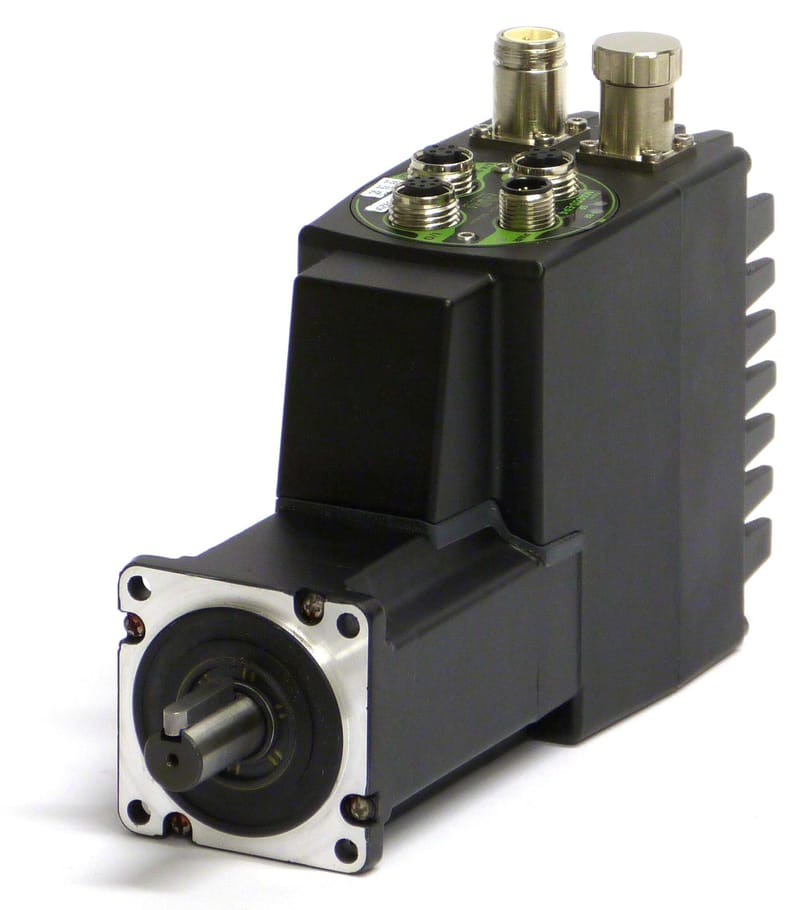

MAC400-D5-CAGM JVL IP55 Rated Integrated Motor

More Views

MAC400-D5-CAGM JVL IP55 Rated Integrated Motor

Availability: 0

$4,054.41

Quick Overview

The JVL MAC400-D5 Integrated Servo Motor is a 400W (0.54hp) motor. The MAC400-D5 has a peak torque of 3.8Nm and weighs 2.8kg (6.17lb). The speed range for the MAC400-D5 is 0-3000RPM with full torque and a maximum of 3500RPM.

Qty:

Email to a Friend

Be the first to review this product

Details

MAC400 - The complete solution for medium power ratings.

With built-in mains power supply.
Choose between model with or without brake.
Also in IP66 version.
Choose Expansion module from the extensive selection for any application.

Motor size is:

MAC400-D2 400W
MAC400-D5 (with built-in brake) 400W

New features:

Absolute multiturn encoder without battery
Real-time industrial Ethernet: Profinet, Ethernet/IP, MODBUS TCP, EtherCAT, Powerlink and SercosIII
2 RS422 channels for encoder in/output and SSI encoder etc.
6IO for capture of position, interrupt, counters, enable, timer and PLC functions

Additional Information

Part Number	MAC400-D5-CAGM
Brand	JVL Industri Elektonik A/S
Pack Size	1.0000
UOM	EA
Lead time (Historical if not in stock)	0 Lead Days
Product Type	Motor
IP Rating	IP55
